Product Detailed Parameters

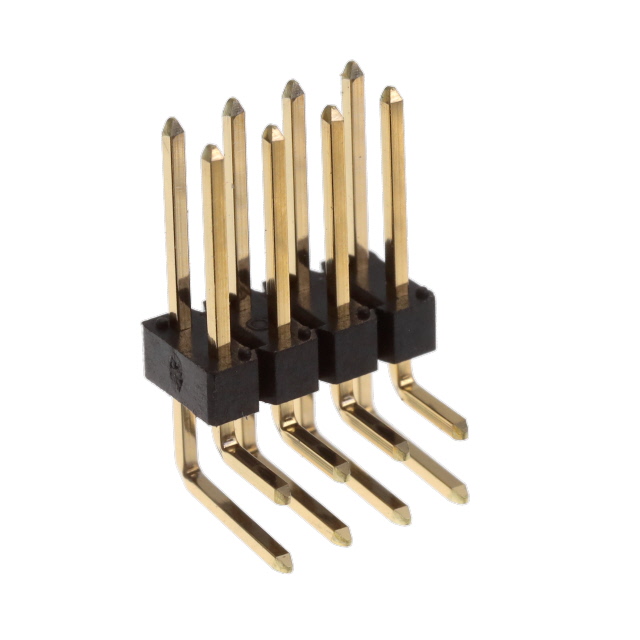

- Description：CONN HEADER R/A 8POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129382-908003BLF is a header connector from the Econostik series. It features an 8-position, dual-row configuration with a 2.54mm pitch. The connector utilizes right-angle through-hole termination for PCB mounting. Electrical ratings include a current capacity of 3A and a voltage rating of 110VDC. The housing material is thermoplastic with UL94 V-0 flammability classification.
Feature Summary
- Right-angle orientation facilitates compact board layout integration
- Dual-row design supports higher density connections within limited space
- Through-hole termination ensures robust mechanical stability on printed circuit boards
Applications
- General purpose electronic assemblies
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify the specific suffix against official Amphenol documentation to confirm exact pin count and termination style. Ensure compatibility with mating receptacles regarding pitch and row configuration. Confirm RoHS compliance status if required by project specifications. Cross-reference the base product number 10129382 for family-level characteristics.
Selection Notes
Select this component when right-angle connectivity is required for dual-row signal transmission. The 2.54mm pitch is standard for general-purpose interconnects. Consider the 3A current rating for power distribution needs. Evaluate the through-hole mounting method against surface-mount alternatives based on mechanical stress requirements.
Part Context
This connector belongs to the Econostik line produced by Amphenol ICC (FCI). FCI was acquired by Amphenol in 2016 and continues under the Amphenol brand. The Econostik series focuses on cost-effective, durable solutions for various industrial and commercial applications. This specific model represents a standard header variant within that portfolio.
Replacement Considerations
Check for direct substitutes within the 10129382 base family. Verify identical pitch, row count, and termination type before substitution. Contact manufacturer for approved alternate part numbers if original is unavailable.
