Product Detailed Parameters
- Description：CONN HEADER R/A 12POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

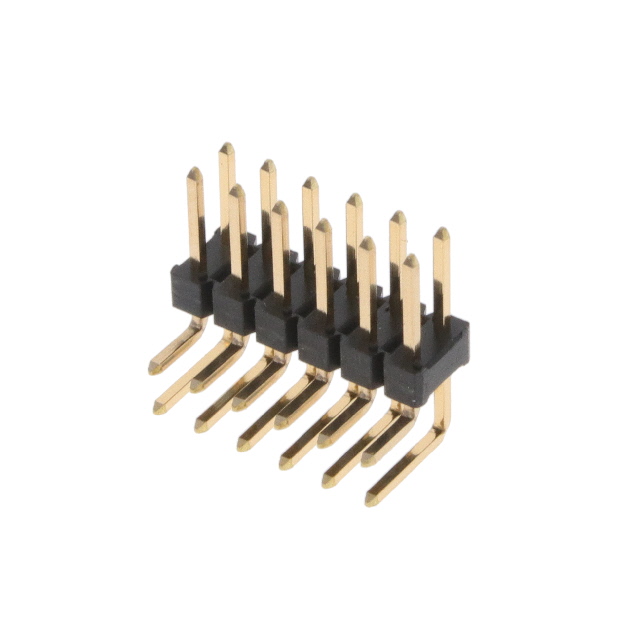

The Amphenol ICC (FCI) 10129382-912001BLF is a 12-position header connector from the EconoStik series. It features a 2.54 mm pitch and a 2-row configuration with male pin contacts. Designed for right-angle through-hole mounting, it utilizes gold-plated brass terminals. The unit supports board-to-board applications with a current rating of 3 A and operates within a temperature range of -55°C to +105°C.
Feature Summary
- Right-angle through-hole mounting for secure PCB integration
- Gold-plated brass contacts for reliable conductivity
- EconoStik series design for standard interconnect needs
Applications
- Board-to-board interconnections
- General electronic equipment assembly
- Industrial control systems
Procurement Notes
Verify the specific part number suffix against official Amphenol documentation to confirm exact contact count and orientation. Confirm that the BLF suffix corresponds to the black thermoplastic housing variant. Cross-reference the manufacturer datasheet to ensure compatibility with mating sockets before procurement.
Selection Notes
Select this component when a low-profile, right-angle header is required for dense PCB layouts. Ensure the mating connector matches the 2.54 mm pitch and 2-row format. Verify that the 3 A current rating meets the circuit requirements and that the operating temperature range aligns with the environmental conditions.
Part Context
This connector belongs to the Amphenol EconoStik family, known for cost-effective solutions in general-purpose electronics. The 10129382 base series offers various position counts and configurations. This specific model provides a compact solution for connecting boards at a right angle while maintaining standard spacing.
Replacement Considerations
Compatible substitutes include other 12-position, 2.54 mm pitch right-angle headers from Amphenol or third-party manufacturers. Ensure replacement parts match the through-hole termination style and gold plating specifications. Verify mechanical dimensions and mating force characteristics for direct interchangeability.
