Product Detailed Parameters
- Description：CONN HEADER R/A 12POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

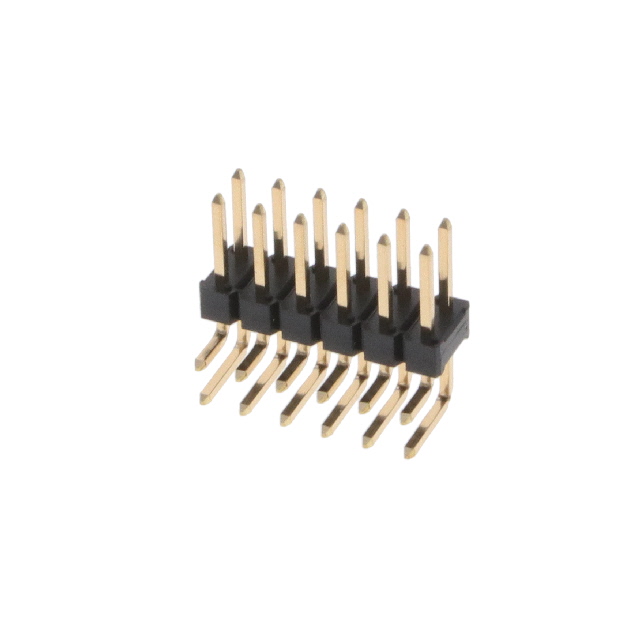

The Amphenol ICC (FCI) part number 10129382-912002BLF is a header connector from the EconoStik series. It features a right-angle, through-hole mounting configuration with a 2.54 mm pitch. The component has two rows and twelve contacts, designed for board-to-board connections. Rated at 3A current and 1500V voltage, it utilizes gold-plated brass contacts within a thermoplastic housing. Operating temperatures range from -55°C to 105°C.
Feature Summary
- Right-angle design facilitates compact board-to-board interconnections
- Gold-plated brass contacts ensure reliable signal transmission
- Thermoplastic housing provides structural integrity and insulation
Applications
- Industrial control systems
- Consumer electronics assemblies
- General-purpose circuit boards
Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to confirm mechanical orientation and contact plating specifications. Ensure compatibility with mating connectors regarding pin count and row configuration. Confirm RoHS compliance status if required by project regulations before finalizing procurement orders.
Selection Notes
Select this component when a right-angle, double-row header is required for space-constrained applications. The 2.54 mm pitch matches standard PCB grid layouts. Verify that the 3A current rating and 1500V dielectric strength meet the electrical requirements of the target circuit design and operating environment.
Part Context
This connector belongs to the EconoStik series, which offers cost-effective solutions for various electronic markets. Amphenol ICC (FCI) integrates advanced engineering to support high-density interconnects. The product line emphasizes reliability and modularity for information technology and commercial electronics sectors.
Replacement Considerations
Cross-reference with other EconoStik headers sharing identical 2x6 pin configurations and right-angle orientations. Verify that alternative parts maintain the same 2.54 mm pitch and through-hole termination style to ensure mechanical fit without redesigning the printed circuit board layout.
