10129382-914001BLF

Overview

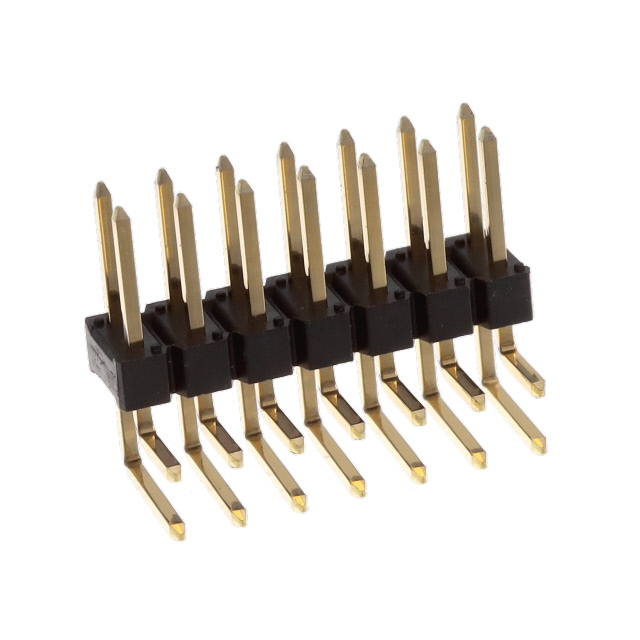

The Amphenol ICC (FCI) 10129382-914001BLF is a right-angle pin strip header from the EconoStik series. It features 14 positions with a 2.54 mm pitch and operates within a temperature range of -55°C to +105°C. The connector utilizes gold-plated brass contacts rated for 3 A at 110 VDC. Designed for through-hole mounting, it includes a black thermoplastic housing with UL 94 V-0 flammability rating.

Feature Summary

• Right-angle through-hole mounting configuration
• Gold-plated brass contact system
• UL 94 V-0 rated thermoplastic housing

Applications

• General purpose circuit interconnection
• Industrial equipment board-to-board connections

Procurement Notes

Verify current availability status directly with authorized distributors or the manufacturer. Confirm that the specific ordering suffix matches the required pin count and termination style. Ensure compatibility with mating socket components before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, right-angle connection is required for space-constrained designs. The 2.54 mm pitch ensures compatibility with standard PCB spacing. Verify that the 3 A current rating meets the electrical load requirements of the target application circuit.

Part Context

This part belongs to the EconoStik 10129382 series, which provides reliable interconnection solutions for various electronic assemblies. The series is characterized by its robust mechanical design and consistent electrical performance across different environmental conditions.

Replacement Considerations

Compatible substitutes include other 14-position, 2.54 mm pitch right-angle headers from the same series, such as the 10129382-950004BLF, provided the physical dimensions and electrical ratings remain compatible.
