10129382-914002BLF

Overview

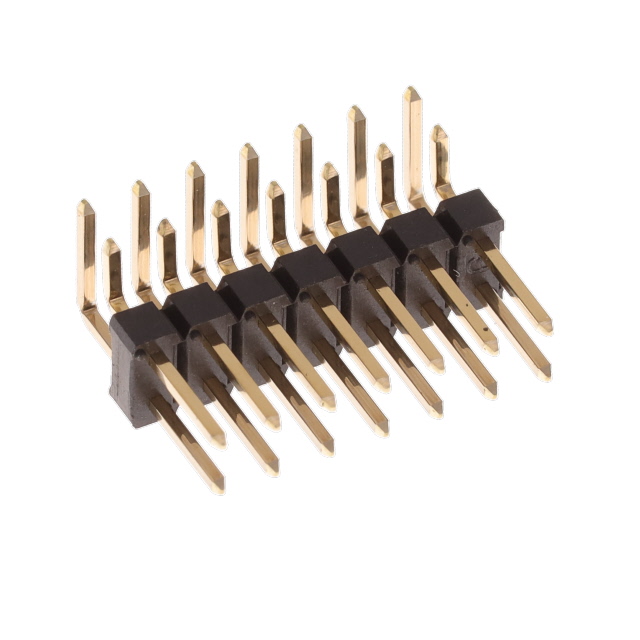

The Amphenol ICC (FCI) part number 10129382-914002BLF is a pin strip header from the EconoStik series. It features a 2-row configuration with 14 positions and a 2.54 mm pitch. The connector utilizes right-angle through-hole solder termination for secure board mounting. Contact surfaces are gold-plated brass pins, ensuring reliable electrical conductivity. The housing is constructed from black thermoplastic material rated UL 94 V-0 for flammability. It supports a current rating of 3 A and operates within a temperature range of -55°C to +105°C.

Feature Summary

• Right-angle through-hole design facilitates efficient PCB layout and space optimization.
• Gold-plated contacts provide durable connection performance in general applications.
• EconoStik series construction ensures cost-effective reliability for standard interconnect needs.

Applications

• General electronic circuit interconnections
• Industrial control system boards
• Test equipment interfaces

Procurement Notes

Verify the specific pin count and row configuration against schematic requirements before ordering. Confirm that the right-angle orientation matches the mechanical constraints of the target assembly. Ensure the soldering process parameters align with the through-hole termination specifications to maintain joint integrity during production.

Selection Notes

Select this component when a low-profile, right-angle header is required for 2.54 mm spacing applications. Consider the 3 A current rating and thermal limits for power handling capabilities. Evaluate the EconoStik series benefits for budget-conscious designs requiring standard signal or low-power connections without specialized high-speed characteristics.

Part Context

This component belongs to the Amphenol FCI EconoStik family, which focuses on providing economical yet reliable connectivity solutions. The brand leverages extensive engineering expertise to deliver connectors suitable for mass-market electronics. This specific model represents a standard pin header variant designed for straightforward board-to-board or cable-to-board integration tasks.

Replacement Considerations

Compatible substitutes include other 14-position, 2.54 mm pitch right-angle headers from the same manufacturer series. Verify equivalent electrical ratings and physical dimensions before swapping parts to ensure mechanical fit and functional compatibility within the existing design.

FAQ

What is the contact plating material for this header?

The contacts are made of brass with gold plating to ensure reliable conductivity and corrosion resistance.

Is this connector suitable for high-frequency signal transmission?

No, this EconoStik header is designed for general applications and does not feature impedance-controlled structures required for high-frequency signals.
