10129382-914004BLF

Overview

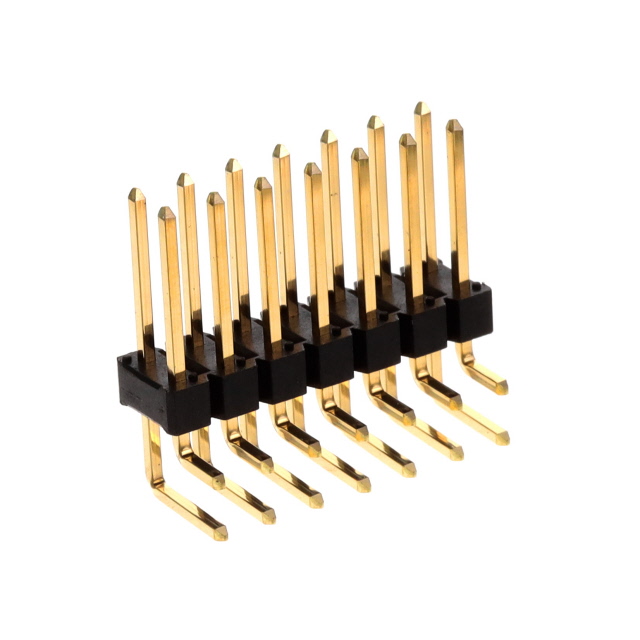

The Amphenol ICC (FCI) 10129382-914004BLF is a pin strip header from the EconoStik series, designed for board-to-board applications. It features a 2-row configuration with 14 positions and a 2.54 mm pitch. The connector utilizes right-angle through-hole termination with gold-plated brass contacts. Rated for 3 A current, it operates within a temperature range of -55°C to +105°C. The black thermoplastic housing meets UL 94 V-0 flammability standards.

Feature Summary

• Right-angle through-hole mounting design for secure PCB integration
• Gold-plated male pin contacts ensuring reliable signal transmission
• Thermoplastic insulation housing with UL 94 V-0 fire rating

Applications

• Board-to-board interconnection systems
• Industrial instrumentation circuits
• Factory automation control boards

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official Amphenol FCI documentation. Confirm that the specific suffix matches the required 14-position configuration and right-angle orientation. Ensure compliance with RoHS directives and check for any recent product change notices affecting material composition or packaging specifications before finalizing procurement orders.

Selection Notes

Select this component when a low-cost, high-density connection is required for standard voltage signals. The 2.54 mm pitch accommodates common wire gauges and PCB trace widths. The right-angle form factor aids in space-constrained layouts where vertical clearance is limited. Verify that the 3 A current rating aligns with the circuit's power requirements and thermal management capabilities.

Part Context

This header belongs to the EconoStik line, which provides cost-effective connectivity solutions for general electronic assemblies. As an Amphenol ICC (FCI) product, it leverages established manufacturing standards for durability and signal integrity. The series is widely utilized in commercial electronics and industrial equipment requiring robust mechanical connections.

Replacement Considerations

Direct substitutes include other 14-position, 2-row headers with identical 2.54 mm pitch and right-angle through-hole termination. Ensure replacement parts maintain the same contact plating and housing material properties to preserve electrical and mechanical compatibility.
