10129382-916001BLF

$0.36

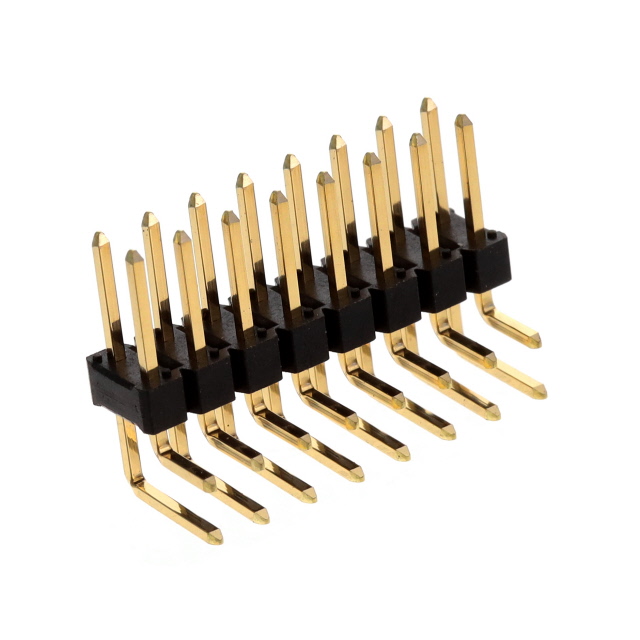

Description：CONN HEADER R/A 16POS 2.54MM
Series：EconoStik™ 10129382
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:ac9d61af47ed Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 16POS 2.54MM
Series：EconoStik™ 10129382
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：-
Insulation Height：-
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129382-916001BLF

Overview

The Amphenol ICC (FCI) part number 10129382-916001BLF is a right-angle header connector belonging to the EconoStik series. It features a 16-position, two-row configuration with a 2.54 mm pitch. Designed for through-hole mounting, this black thermoplastic component utilizes gold-plated brass contacts rated for 3 A current and 110 VDC voltage. The unit operates within a temperature range of -55°C to +105°C and meets UL 94 V-0 flammability standards.

Feature Summary

Right-angle through-hole design for board-to-board connections
Gold-plated brass contacts ensuring reliable signal integrity
EconoStik series construction for general-purpose industrial use

Applications

General purpose electronic assemblies
Industrial control systems
Board-to-board interconnects

Procurement Notes

Verify the specific pin count and row configuration against the datasheet before ordering. Confirm that the right-angle through-hole footprint matches the target PCB layout. Ensure the operating environment stays within the specified thermal limits. Check for RoHS compliance status if required by project specifications. Validate contact plating thickness requirements for long-term reliability.

Selection Notes

Select this component when a low-profile, right-angle header is needed for dense board layouts. The 2.54 mm pitch offers standard compatibility with common mating pins. Consider the 3 A rating for power distribution needs alongside signal lines. The EconoStik series provides a cost-effective solution for high-volume production runs requiring robust mechanical stability.

Part Context

This connector is part of the broader EconoStik family from Amphenol ICC (FCI). The series includes various position counts and configurations tailored for different board densities. It serves as a standard interconnect solution in commercial and industrial electronics markets where reliable, space-efficient connections are prioritized.
