Product Detailed Parameters
- Description：CONN HEADER R/A 16POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

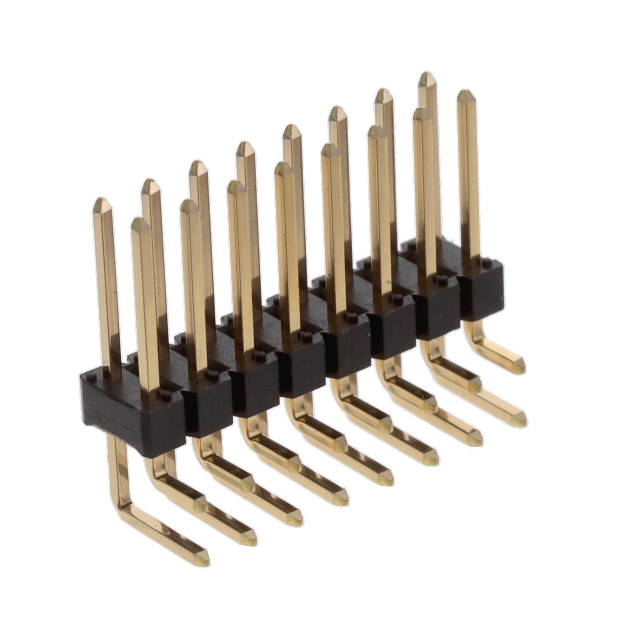

The Amphenol ICC (FCI) part number 10129382-916004BLF is an EconoStik header connector designed for through-hole mounting. It features a right-angle configuration with two rows and eight positions, utilizing a 2.54 mm pitch. The housing is constructed from black thermoplastic material rated UL 94 V-0 for flammability. Electrical specifications include a current rating of 3 A and a voltage rating of 110 VDC. The male pin contacts are made of brass with gold plating to ensure reliable signal transmission.
Feature Summary
- Right-angle through-hole design for efficient board space utilization
- Gold-plated brass contacts for enhanced conductivity and corrosion resistance
- UL 94 V-0 rated black thermoplastic insulation for fire safety
Applications
- General purpose electronic assemblies
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm pin count and row configuration. Ensure compatibility with mating sockets regarding pitch and contact type. Confirm RoHS compliance status if required by project regulations. Cross-reference the datasheet for mechanical dimensions to validate PCB footprint requirements before procurement.
Selection Notes
Select this component when a low-profile, cost-effective interconnect solution is required for general-purpose applications. The right-angle form factor aids in compact vertical routing. Verify that the 3 A current rating meets the circuit load requirements. Ensure the 2.54 mm spacing aligns with existing board layout constraints and mating connector standards.
Part Context
This component belongs to the EconoStik series by Amphenol ICC (FCI), formerly Framatome Connectors International. The series focuses on providing durable, polarized, and economical wire-to-board or board-to-board connection solutions. FCI was acquired by Amphenol in 2016, integrating its high-speed and power management technologies into the broader Amphenol portfolio.
Replacement Considerations
Check for direct substitutes within the same EconoStik family with different pin counts. Verify equivalent connectors from other manufacturers maintaining identical 2.54 mm pitch and right-angle through-hole specifications. Ensure mechanical and electrical parameters match exactly before substitution.
