Product Detailed Parameters
- Description：CONN HEADER R/A 20POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

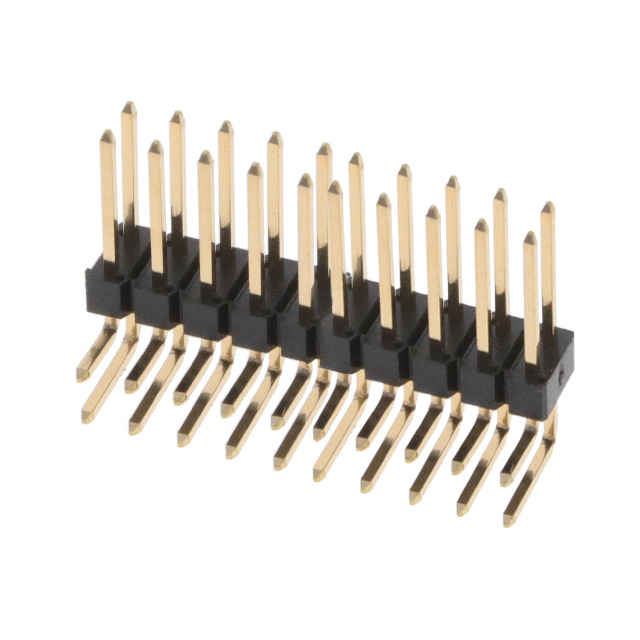

The Amphenol ICC (FCI) 10129382-920002BLF is a pin strip header from the EconoStik series, designed for board-to-board connections. It features a 2-row configuration with 20 positions and a 2.54 mm pitch. The connector utilizes right-angle through-hole solder termination with gold-plated brass contacts. Rated for 3 A current and 110 VDC voltage, it operates within a temperature range of -55°C to +105°C. The black thermoplastic housing provides UL 94 V-0 flammability rating.
Feature Summary
- Right-angle through-hole mounting for PCB integration
- Gold-plated brass contacts for reliable signal transmission
- Thermoplastic insulation with UL 94 V-0 flammability rating
Applications
- General purpose electronic assemblies
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify component authenticity against official Amphenol ICC documentation before integration. Confirm that the specific suffix matches project requirements, as variations may exist within the series. Ensure storage conditions maintain contact integrity. Cross-reference technical drawings for mechanical fitment prior to procurement finalization.
Selection Notes
Select this model for applications requiring right-angle interconnects with standard 2.54 mm spacing. The 20-position dual-row layout suits compact board-to-board links. Verify thermal stability meets operational extremes. Consider the unshrouded design for mating compatibility with corresponding sockets in the same series.
Part Context
This component belongs to the Amphenol FCI EconoStik line, acquired via Amphenol's purchase of FCI. The series targets information, communication, and commercial electronics markets. It emphasizes signal integrity and manufacturing efficiency for high-volume assembly processes across diverse industrial sectors.
Replacement Considerations
Compatible substitutes include other EconoStik headers with identical 2x10 positioning and 2.54 mm pitch. Verify matching row count, termination style, and contact plating specifications when evaluating alternative part numbers for direct replacement.
