Product Detailed Parameters

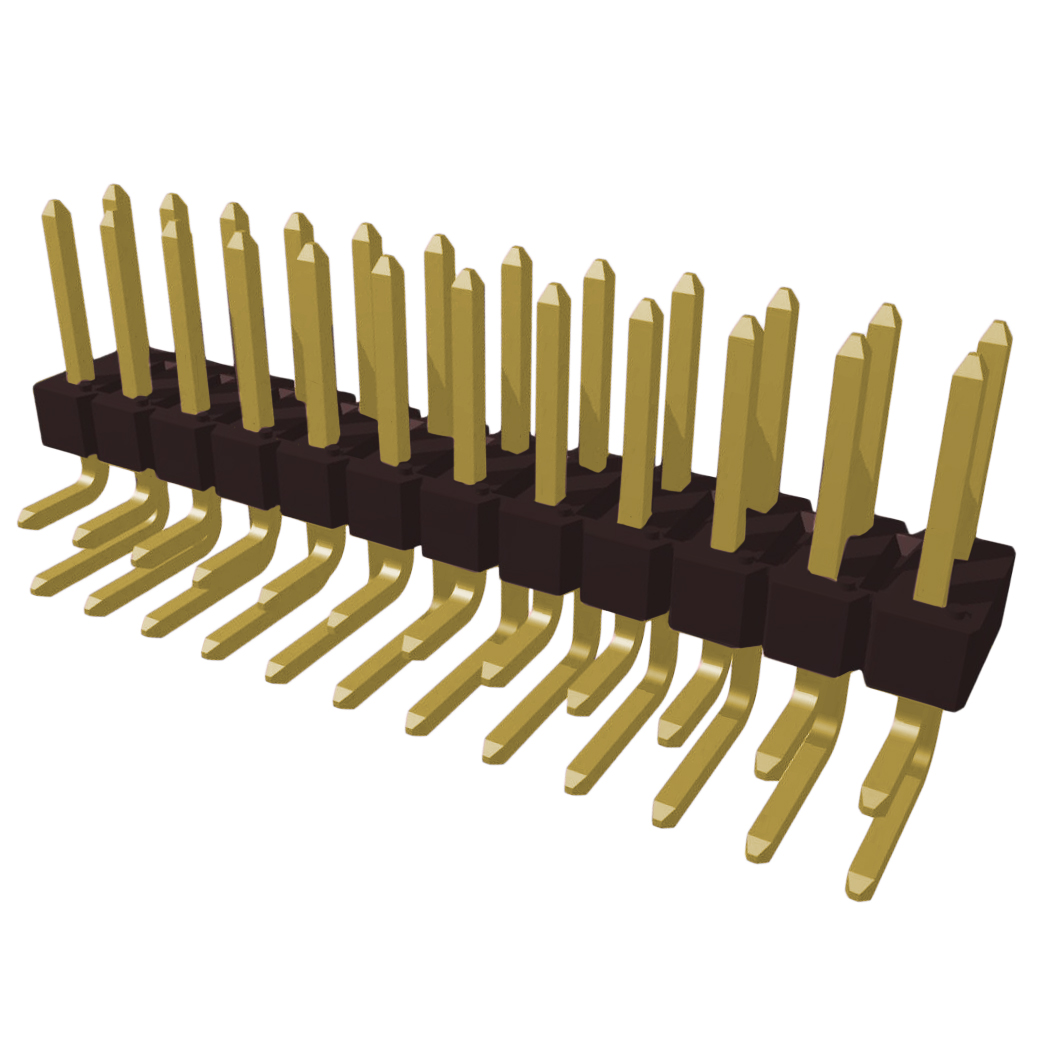

- Description：CONN HEADER R/A 24POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) 10129382-924002BLF is a pin strip header connector from the EconoStik series. It features 24 positions arranged in a dual row configuration with a 2.54 mm pitch and row spacing. Designed for right-angle through-hole mounting, it utilizes gold-plated brass contacts rated for 3 A current. The housing is black thermoplastic with UL 94 V-0 flammability rating, supporting an operating temperature range of -55°C to +105°C.
Feature Summary
- Right-angle through-hole mounting style for PCB integration
- Gold-plated brass contacts ensuring reliable signal transmission
- EconoStik series design optimized for board-to-board connections
Applications
- Board-to-board interconnects
- General electronic equipment
- Industrial control systems
Procurement Notes
Verify component authenticity and datasheet alignment before procurement. Confirm that the specific suffix matches required mechanical dimensions and contact plating specifications. Ensure compliance with RoHS directives and check for any recent product change notices affecting material composition or manufacturing origin.
Selection Notes
Select this model when a low-cost, right-angle male header is required for 2.54 mm pitch applications. Consider the 3 A current rating and -55°C to +105°C temperature range for environmental suitability. Evaluate the through-hole termination method against available PCB assembly capabilities and mechanical stress requirements.
Part Context
This component belongs to the Amphenol FCI EconoStik family, which provides cost-effective interconnect solutions for commercial electronics. The brand transition from FCI to Amphenol ICC maintains established engineering standards while leveraging broader global supply chain resources for consistent quality and availability across diverse market segments.
Replacement Considerations
Compatible substitutes within the same series include 10129382-908002BLF (8-position) and 10129382-950004BLF (50-position). Verify identical pitch, row count, and mounting angle when cross-referencing alternative part numbers for direct replacement scenarios.
