Product Detailed Parameters

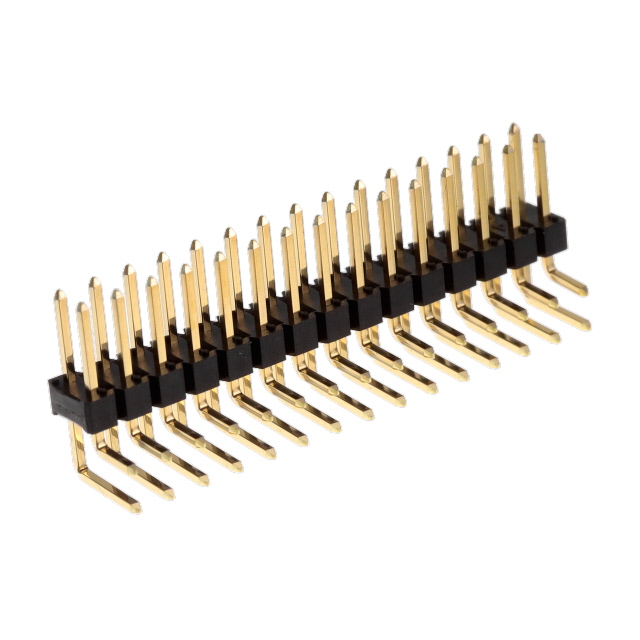

- Description：CONN HEADER R/A 30POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：30
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129382-930001BLF is a header connector from the EconoStik series. It features a 30-position, 2-row pin strip configuration with a 2.54 mm pitch and row spacing. Designed for right-angle through-hole mounting, it utilizes gold-plated brass contacts rated for 3 A current and 1500 V voltage. The thermoplastic housing operates within a temperature range of -55°C to +105°C and meets UL 94 V-0 flammability standards.
Feature Summary
- Right-angle through-hole mounting for board-to-board interconnects
- Gold-plated brass contacts ensure reliable signal transmission
- Thermoplastic housing provides UL 94 V-0 flame retardancy
Applications
- Industrial instrumentation
- Factory automation systems
- IoT device interfaces
Procurement Notes
Verify component authenticity by cross-referencing the manufacturer marking with official Amphenol FCI documentation. Confirm that the specific suffix matches the required 30-position configuration and right-angle orientation. Ensure compliance with RoHS directives if applicable to your assembly requirements before finalizing procurement orders.
Selection Notes
Select this component when a low-cost, high-density header is required for rigid PCB connections. The 2.54 mm pitch accommodates standard breadboard-compatible wiring. Verify that the 1500 V rating and 3 A current capacity align with the circuit's electrical load. Consider the right-angle form factor for space-constrained vertical stacking applications.
Part Context
This connector belongs to the EconoStik family, which focuses on cost-effective solutions for general-purpose interconnect needs. As an Amphenol FCI product, it integrates into broader industrial and commercial electronic ecosystems. The series emphasizes reliability in standard environments while maintaining competitive manufacturing tolerances for mass production integration.
Replacement Considerations
Direct substitutes include other 30-position, 2.54 mm pitch right-angle headers from compatible manufacturers. Ensure mating dimensions, contact plating, and thermal ratings match exactly. Generic equivalents may vary in housing material or contact retention force; verify mechanical fit before adoption.
