Product Detailed Parameters
- Description：CONN HEADER R/A 32POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：32
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

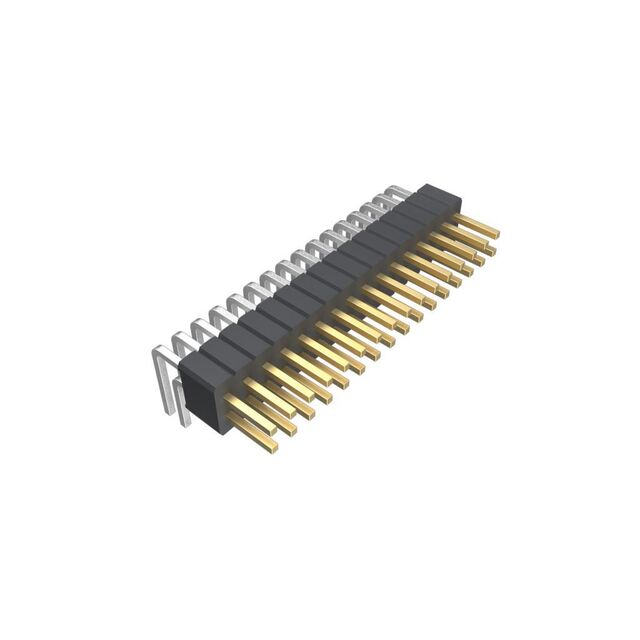

The Amphenol ICC (FCI) 10129382-932001BLF is a right-angle pin header from the EconoStik series, designed for board-to-board connections. It features 32 positions arranged in a dual-row configuration with a 2.54 mm pitch. The connector utilizes brass contacts with gold plating and a black thermoplastic housing rated UL 94 V-0. Electrical specifications include a current rating of 3 A and a voltage rating of 110 VDC. It supports through-hole solder termination and operates within a temperature range of -55°C to +105°C.
