Product Detailed Parameters
- Description：CONN HEADER R/A 32POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：32
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

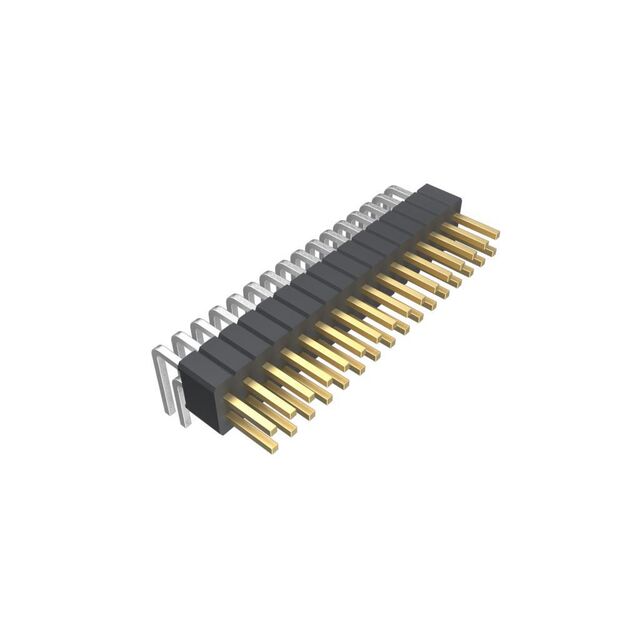

The Amphenol ICC (FCI) part number 10129382-932003BLF is a pin header connector belonging to the EconoStik series. It features a 32-position configuration arranged in two rows with a 2.54 mm pitch. Designed for right-angle through-hole mounting, this component utilizes brass contacts with gold plating and a black thermoplastic housing. The connector supports a current rating of 3 A and operates within a temperature range of -55°C to +105°C. Its UL 94 V-0 flammability rating ensures compliance with safety standards for board-to-board applications.
Feature Summary
- EconoStik series design optimized for reliable signal integrity and power distribution
- Right-angle through-hole termination facilitates efficient PCB layout routing
- Gold-plated brass contacts ensure durable connection performance
- Thermoplastic housing provides structural stability and electrical insulation
Applications
- Board-to-board interconnection systems
- Industrial control equipment circuitry
- Commercial electronic device assemblies
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm exact contact count and mechanical dimensions. Ensure that the selected variant matches the required right-angle orientation and through-hole termination style for your printed circuit board design. Cross-reference the datasheet for precise mating force and retention specifications before finalizing procurement orders.
Selection Notes
Select this component when a 32-position, dual-row header is required for right-angle connections. Confirm that the 2.54 mm pitch aligns with existing footprint requirements. Evaluate the 3 A current rating against system load demands. Verify that the operating temperature range meets environmental conditions. Ensure compatibility with corresponding socket connectors in the same series.
Part Context
This connector is part of the Amphenol FCI EconoStik family, which focuses on cost-effective solutions for general-purpose interconnect needs. The brand transition from FCI to Amphenol ICC maintains product lineage while integrating broader communication solution capabilities. This specific model represents a standard high-density header option widely used in various electronic manufacturing sectors.
Replacement Considerations
Compatible substitutes include the 10129382-912003BLF for reduced position counts and the 10129382-950004BLF for higher density configurations. Verify mechanical fit and electrical ratings when substituting with other EconoStik series headers to maintain assembly consistency.
