Product Detailed Parameters
- Description：CONN HEADER R/A 40POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：40
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

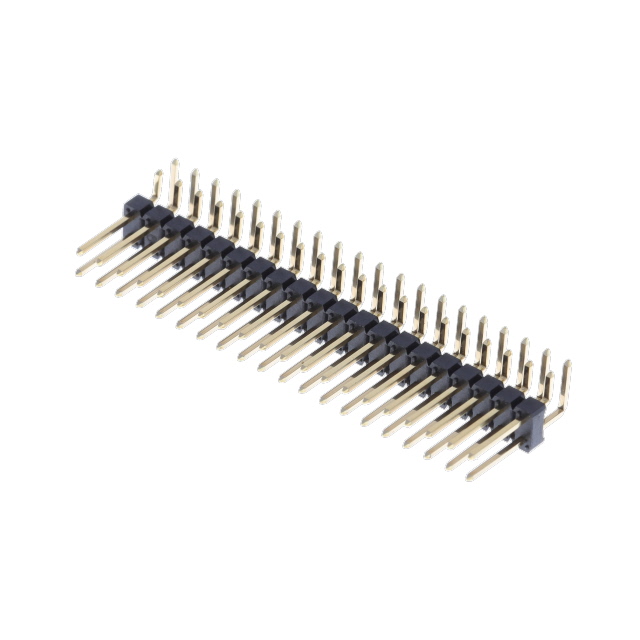

The Amphenol ICC (FCI) part number 10129382-940004BLF is a header connector from the EconoStik series. It features 40 positions arranged in a dual row configuration with a 2.54 mm pitch. The component utilizes right-angle through-hole solder termination and male pin contacts. Constructed with brass contacts and a black thermoplastic housing, it supports board-to-board applications within an operating temperature range of -55°C to +105°C.
Feature Summary
- Right-angle through-hole mounting for PCB integration
- Dual-row pin strip design with gold-plated brass contacts
- EconoStik branded thermoplastic housing
Applications
- Board-to-Board interconnection
Procurement Notes
Verify current manufacturing status and availability directly with Amphenol FCI or authorized distributors. Confirm specific ordering requirements and lead times prior to procurement. Ensure compatibility with mating receptacles and verify that the specified package type meets assembly needs.
Selection Notes
Select this component for applications requiring right-angle headers with a 2.54 mm pitch. Verify that the 40-position dual-row layout fits the design constraints. Ensure the through-hole solder termination method aligns with the manufacturing process and that the thermal rating suits the operational environment.
Part Context
This connector belongs to the EconoStik series by Amphenol ICC (FCI), formerly known as FCI. The company provides interconnect solutions for information and communication markets. This specific model represents a standard pin strip header designed for reliable signal transmission in electronic assemblies.
