Product Detailed Parameters
- Description：CONN HEADER R/A 72POS 2.54MM
- Series：EconoStik™ 10129382
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：72
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

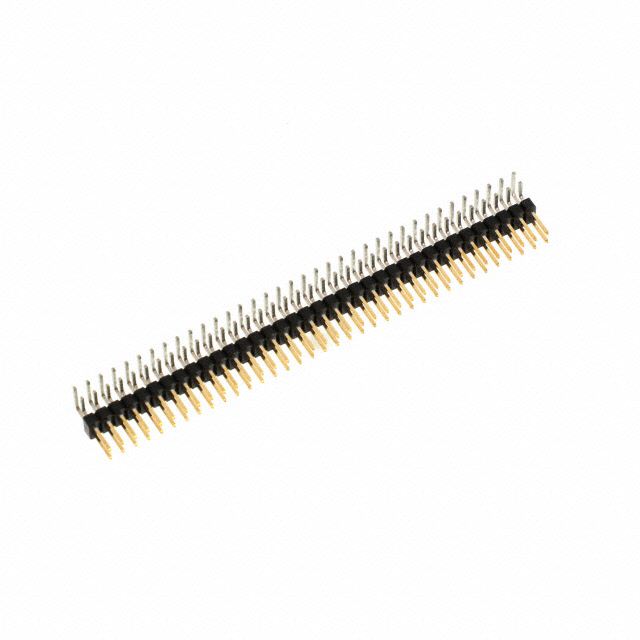

The Amphenol ICC (FCI) part number 10129382-972004BLF is a header connector from the EconoStik series. It features a dual-row configuration with 72 positions and a 2.54 mm pitch. The connector utilizes right-angle through-hole termination with gold-plated brass contacts. Designed for board-to-board applications, it operates within a temperature range of -55°C to +105°C and carries a UL 94 V-0 flammability rating.
Feature Summary
- Dual-row pin strip design for high-density interconnection
- Right-angle through-hole mounting for PCB integration
- Gold-plated brass contacts ensuring reliable conductivity
- EconoStik series construction with thermoplastic housing
Applications
- Board-to-board interconnection systems
- Industrial control equipment interfaces
- Commercial electronic device signal routing
Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to confirm exact contact count and orientation. Confirm RoHS compliance status and material specifications directly with the manufacturer or authorized distributors prior to procurement. Ensure compatibility with mating receptacles regarding pitch and row alignment.
Selection Notes
Select this component when a right-angle, dual-row header with 2.54 mm spacing is required for through-hole assembly. Consider the 3 A current rating and operating temperature limits for circuit requirements. Verify that the mechanical footprint aligns with the target printed circuit board layout and mating connector constraints.
Part Context
This component belongs to the Amphenol FCI EconoStik family, which provides cost-effective interconnect solutions for general electronic applications. The series emphasizes reliable performance in standard commercial environments while maintaining compatibility with industry-standard pin spacing conventions for widespread adoption.
Replacement Considerations
Cross-reference with other 72-position, 2.54 mm pitch, dual-row right-angle headers from the same manufacturer series. Verify identical mechanical dimensions and electrical ratings before substituting with equivalent parts from other suppliers.
