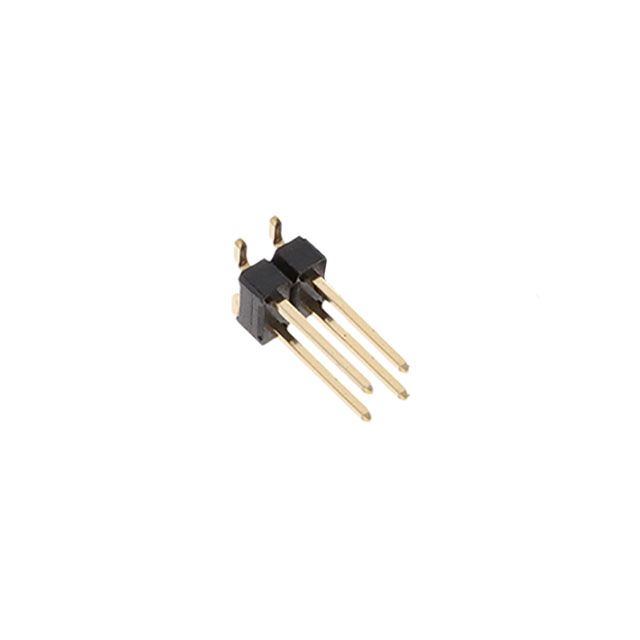

10129383-904002BLF

Description：CONN HEADER SMD 4POS 2.54MM
Series：EconoStik™ 10129383
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:9d6621aec736 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 4POS 2.54MM
Series：EconoStik™ 10129383
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129383-904002BLF

Overview

The Amphenol ICC (FCI) part number 10129383-904002BLF is a surface-mount header connector belonging to the EconoStik series. It features a 4-position configuration with a 2.54mm pitch and utilizes gold plating on the contacts. The component is rated for 110VDC voltage and supports a current capacity of 3A. Designed for board-to-board applications, it offers cuttable functionality for flexible routing.

Feature Summary

Surface-mount technology for automated assembly
Cuttable design for custom length requirements
Gold contact plating for reliable conductivity

Applications

Industrial control systems
Test equipment interfaces
Board-to-board interconnects

Procurement Notes

Verify the specific suffix BLF against official datasheets to confirm material and plating specifications. Ensure compatibility with surface-mount reflow processes. Confirm availability status as distribution channels may vary for discontinued or legacy components.

Selection Notes

Select this component for applications requiring low-profile surface-mount headers with customizable lengths. Verify that the 3A current rating and 110VDC voltage limit align with system requirements. Consider the EconoStik series durability for intended mating cycles.

Part Context

This connector is part of the Amphenol FCI EconoStik family, which provides cost-effective solutions for various electronic assemblies. The series is known for supporting up to 50 mating cycles and is widely used in industrial and test environments where reliable signal transmission is critical.

Replacement Considerations

Check for direct cross-reference part numbers from Amphenol ICC. Evaluate alternative EconoStik variants with identical pin counts and pitch if exact matches are unavailable.
