Product Detailed Parameters
- Description：CONN HEADER SMD 6POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Pick and Place
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

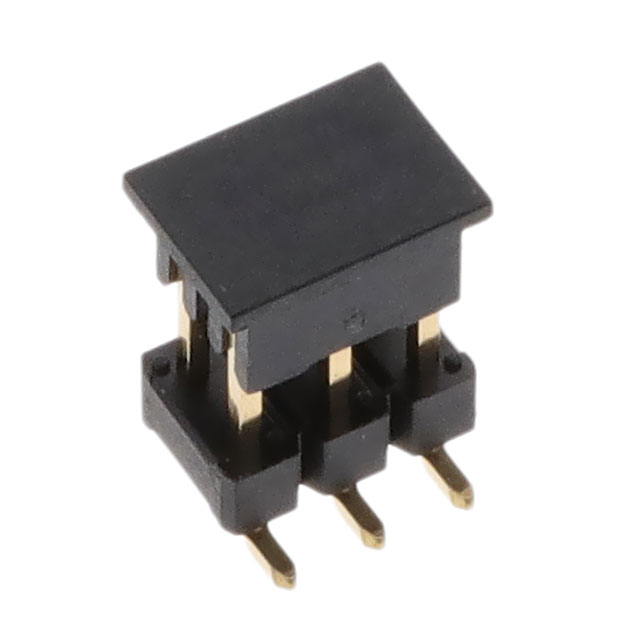

The Amphenol ICC (FCI) part number 10129383-906001ALF is a surface-mount header connector belonging to the EconoStik series. It features a 2x3 pin configuration with a 2.54mm pitch, designed for vertical through-hole soldering applications. The component supports a current rating of 3A and a voltage rating of 110VDC. It operates within a temperature range of -55°C to 105°C and utilizes black insulation material rated UL94 V-0 for flammability.
Feature Summary
- Supports automated pick-and-place assembly processes for efficient manufacturing integration.
- Provides reliable board-to-board connectivity suitable for high-density electronic designs.
Applications
- Industrial control systems
- Test equipment interfaces
- Medical device assemblies
- Telecommunications hardware
Procurement Notes
Verify that the specific suffix 'ALF' confirms lead-free and RoHS compliance status as required by environmental regulations. Ensure the ordering documentation explicitly references the full part number to distinguish it from non-compliant variants or different packaging options. Confirm that the supplier provides traceable certificates of conformity matching the manufacturer's specifications for quality assurance purposes.
Selection Notes
Select this component when a low-cost, vertical surface-mount header is required for general-purpose connections. The 2.54mm pitch ensures compatibility with standard PCB footprints and mating connectors. Consider the 3A current rating and 110VDC voltage limit to ensure safe operation within the target circuit parameters without exceeding thermal or electrical boundaries.
Part Context
This connector is part of the Amphenol FCI EconoStik family, which focuses on cost-effective solutions for signal and power distribution. The acquisition of FCI by Amphenol expanded their portfolio in information and communication markets. This specific header design emphasizes reliability and ease of use in commercial electronics applications requiring robust board interconnections.
Replacement Considerations
Direct substitutes must match the 2x3 SMD form factor, 2.54mm pitch, and vertical orientation. Verify equivalent current ratings and flammability standards before implementation. Cross-reference mating housing dimensions to ensure mechanical compatibility with existing assembly requirements.
