Product Detailed Parameters
- Description：CONN HEADER SMD 8POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Pick and Place
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

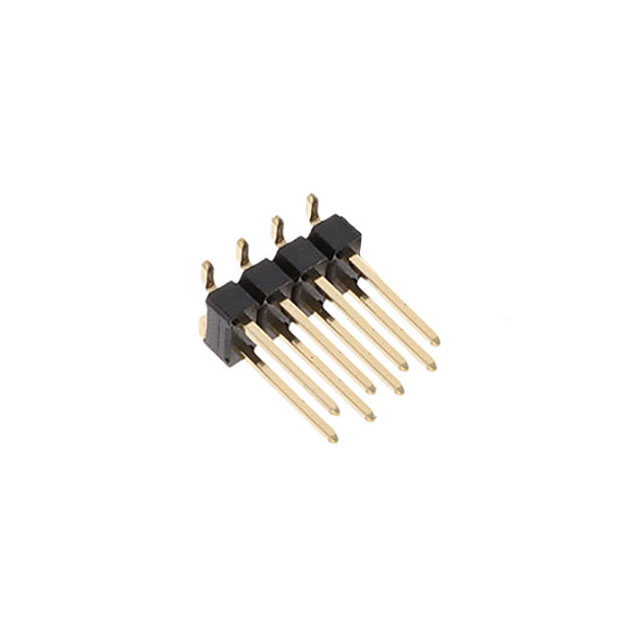

The Amphenol ICC (FCI) part number 10129383-908001ALF is a surface mount pin header belonging to the ECONOSTIK series. It features a vertical through-hole termination style adapted for SMT assembly, offering pick-and-place compatibility. The connector utilizes a 2x4 contact arrangement with a 2.54 mm pitch. Constructed with copper alloy contacts and thermoplastic insulation, it supports an operating temperature range of -55°C to 105°C. The material flammability rating meets UL94 V-0 standards, ensuring safety in electronic assemblies.
Feature Summary
- Surface mount design compatible with automated pick-and-place manufacturing processes
- Vertical orientation providing compact board-to-board or wire housing connections
- Thermoplastic insulation material ensuring structural integrity and safety compliance
Applications
- Consumer electronics assembly requiring compact interconnects
- Industrial control systems utilizing surface mount technology
- General-purpose circuit boards needing reliable signal transmission
Procurement Notes
Verify the specific suffix 'ALF' against official Amphenol documentation to confirm lead-free status and exact plating specifications. Ensure the ordering quantity aligns with manufacturer standard packaging requirements. Cross-reference the full part number with current datasheets to confirm availability and any recent design changes before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, surface-mount header is required for 2.54 mm pitch applications. The ECONOSTIK series offers cost-effective solutions for high-volume production environments. Consider the vertical form factor for space-constrained designs where board thickness must be minimized while maintaining robust electrical connectivity.
Part Context
This component is manufactured by Amphenol ICC (FCI), formerly Framatome Connectors International, which was acquired by Amphenol Corporation. The FCI brand is recognized for providing diverse interconnect solutions across communication, data processing, and consumer markets. This specific header falls under the broader portfolio of board-to-board and wire housing connectors designed for reliability and ease of integration.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material.
