Product Detailed Parameters

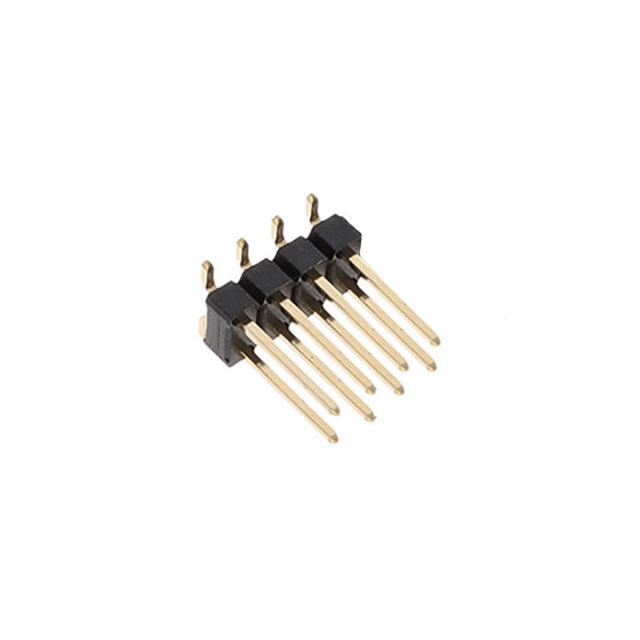

- Description：CONN HEADER SMD 8POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Pick and Place
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129383-908002ALF is an EconoStik header connector designed for board-to-board applications. It features a 2.54mm pitch and supports up to 50 mating cycles. The component utilizes gold contact finish with a thickness of 1.00µin (0.025µm). It is suitable for various industrial control and test environments.
Feature Summary
- Supports up to 50 mating cycles
- Suitable for board-to-board applications
- Gold contact finish
Applications
- Industrial control systems
- Test equipment
Procurement Notes
Verify the specific pin count and configuration against your design requirements, as the suffix may denote variations. Confirm RoHS compliance status and packaging type directly with the manufacturer or authorized distributors before ordering. Ensure the header style matches your PCB layout constraints.
Selection Notes
Select this component when board-to-board connectivity is required in industrial or test settings. Consider the 50-cycle mating limit and 2.54mm pitch when designing interconnect solutions. Verify that the gold contact finish meets the environmental and electrical performance needs of the target application.
Part Context
This part belongs to the Amphenol FCI EconoStik series, which provides reliable interconnect solutions for electronic assemblies. Amphenol acquired FCI, integrating its technologies into the Amphenol ICC division to support growth in information, communication, and commercial electronics markets.
FAQ
What is the mating cycle rating for this connector?
The connector supports up to 50 mating cycles.
What is the contact finish material?
The mating contact finish is gold.
