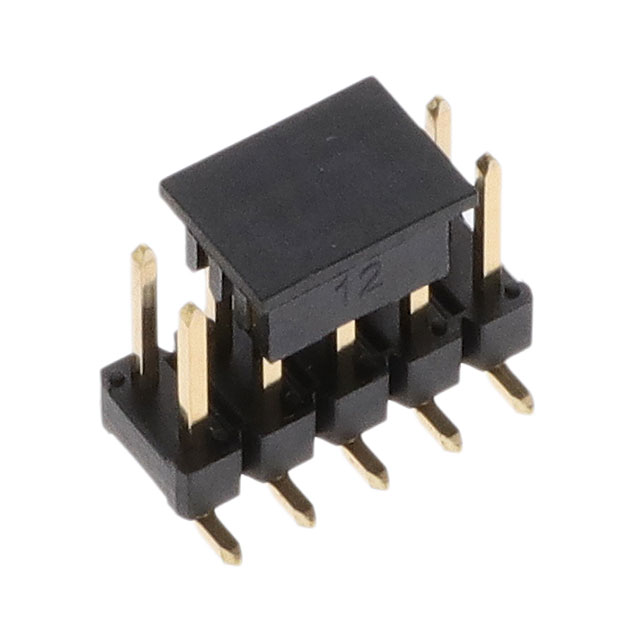

10129383-910001ALF

$0.45

Description：CONN HEADER SMD 10POS 2.54MM
Series：EconoStik™ 10129383
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:05c4e51afba4 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 10POS 2.54MM
Series：EconoStik™ 10129383
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：Pick and Place
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129383-910001ALF

Overview

The Amphenol ICC (FCI) part number 10129383-910001ALF is a surface mount straight header from the FCI Econostik series. It features a 2.54 mm pitch and supports 10 contacts arranged in two rows. The connector utilizes copper alloy contacts with an unlatched design, suitable for board-to-board applications.

Feature Summary

Supports up to 50 mating cycles
Designed for various board-to-board applications

Applications

Industrial control systems
Test equipment

Procurement Notes

Verify the specific manufacturer product number against official Amphenol documentation to ensure compatibility. Confirm that the surface mount straight termination type matches the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a low-profile, unlatched header is required for board-to-board connections. Ensure the application environment aligns with the standard performance capabilities of the Econostik series without requiring specialized high-cycle or high-voltage ratings.

Part Context

This component belongs to the FCI Econostik family, which provides standard interconnect solutions. The series is known for supporting general-purpose electronic assemblies, offering reliable connectivity through standardized pin spacing and robust mechanical construction for common industrial uses.
