Product Detailed Parameters
- Description：CONN HEADER SMD 10POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

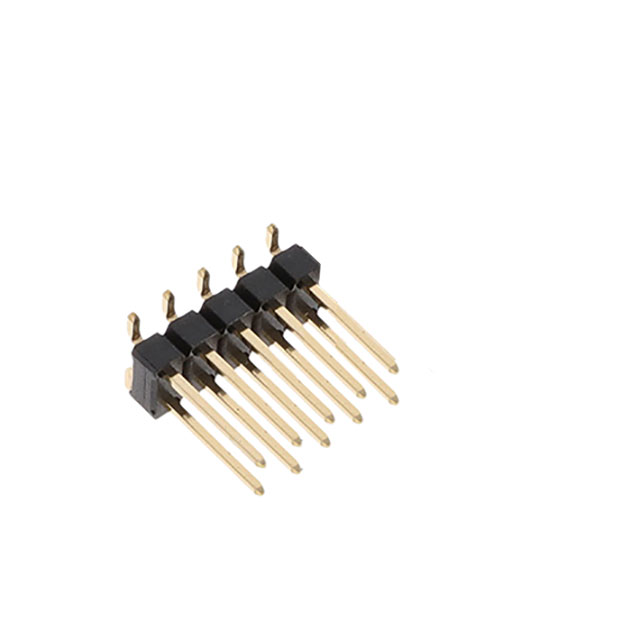

The 10129383-910001BLF is a connector header manufactured by Amphenol ICC (FCI). It features a surface mount installation type with 10 positions arranged in a single row. The connector utilizes a 0.100 inch (2.54mm) pitch for mating compatibility. It is designed for board-to-board applications and includes cuttable styling for flexible configuration. The component supports a voltage rating of 110VDC and carries a current rating of 3A.
Feature Summary
- Surface mount design for automated PCB assembly
- Cuttable header style allows for custom pin counts
- Standard 2.54mm pitch ensures broad mating compatibility
Applications
- Board-to-board interconnection systems
- General electronic circuit assemblies
- Industrial control modules
Procurement Notes
Verify the specific suffix BLF against official datasheets to confirm plating and material specifications. Ensure the ordering part number matches the required surface mount orientation and pin count. Cross-reference manufacturer documentation to confirm current production status and availability before finalizing procurement plans.
Selection Notes
Select this component when surface mount technology is required for 2.54mm pitch connections. The cuttable feature provides flexibility for varying signal line requirements. Confirm that the 3A current rating and 110VDC voltage limit align with the target application's electrical constraints and environmental conditions.
Part Context
This component belongs to the standard header series produced by Amphenol ICC (FCI), formerly FCI. The manufacturer specializes in interconnect solutions for information, communication, and commercial electronics markets. This specific part represents a common through-hole or surface mount variant within their extensive portfolio of rectangular connectors.
Replacement Considerations
Compatible substitutes include other 10-position, 2.54mm pitch surface mount headers from the same manufacturer. Verify mechanical footprint and pin alignment before substitution. Alternative suppliers may offer equivalent specifications, but physical dimensions must be validated.
