Product Detailed Parameters

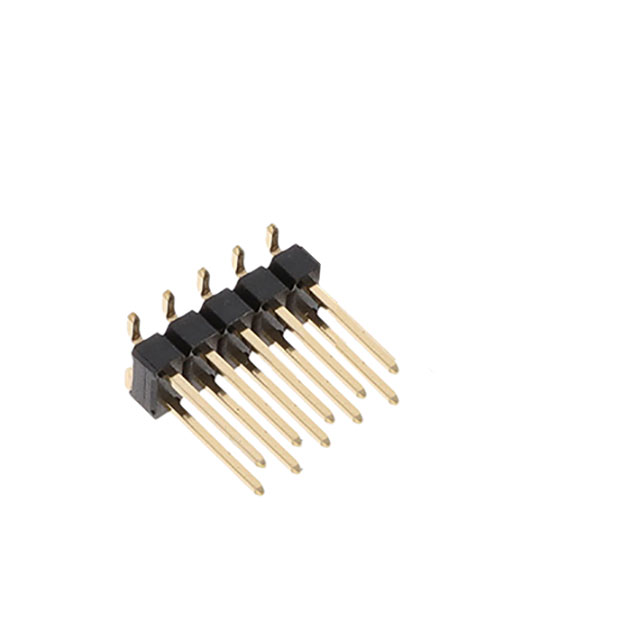

- Description：CONN HEADER SMD 10POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129383-910002BLF is a surface mount header connector from the PwrBlade series. It features a 10-position, single-row configuration with a 0.100-inch (2.54mm) contact spacing. The connector utilizes copper alloy contacts with gold plating and is rated for 3A current. Designed for board-edge or through-hole applications, it offers UL 94 V-0 flammability rating and operates within a temperature range of -20°C to 105°C.
Feature Summary
- Surface mount technology for automated assembly integration
- Gold-plated copper alloy contacts for reliable signal transmission
- UL 94 V-0 rated housing material for fire safety compliance
Applications
- Industrial control systems requiring robust power connections
- Commercial electronic equipment with space-constrained PCB layouts
- Telecommunications infrastructure hardware
Procurement Notes
Verify RoHS compliance status as some sources indicate lead-free variants while others may reference older specifications. Confirm exact pin count and orientation against schematic requirements. Check for alternative suffixes that may denote different plating thicknesses or packaging formats. Ensure compatibility with automated pick-and-place equipment due to surface mount design. Validate supplier documentation against official Amphenol ICC datasheets for accuracy.
Selection Notes
Select this component when surface mount assembly is required for high-reliability power or signal lines. The 2.54mm pitch ensures compatibility with standard PCB footprints. Consider the 3A current rating for load requirements. Evaluate thermal management needs given the operating temperature range. Compare against through-hole alternatives if mechanical stress resistance is critical.
Part Context
This connector belongs to the PwrBlade family, designed for high-density interconnects in commercial and industrial markets. Amphenol ICC acquired FCI, integrating their connector technologies. This specific model represents a compact solution for modern electronics manufacturing, balancing performance with space efficiency.
Replacement Considerations
Direct substitutes include other 10-position, 2.54mm pitch surface mount headers from Amphenol ICC. Verify identical pinout, current rating, and mounting style before substitution. Cross-reference with generic equivalents only if mechanical dimensions and electrical ratings match precisely.
