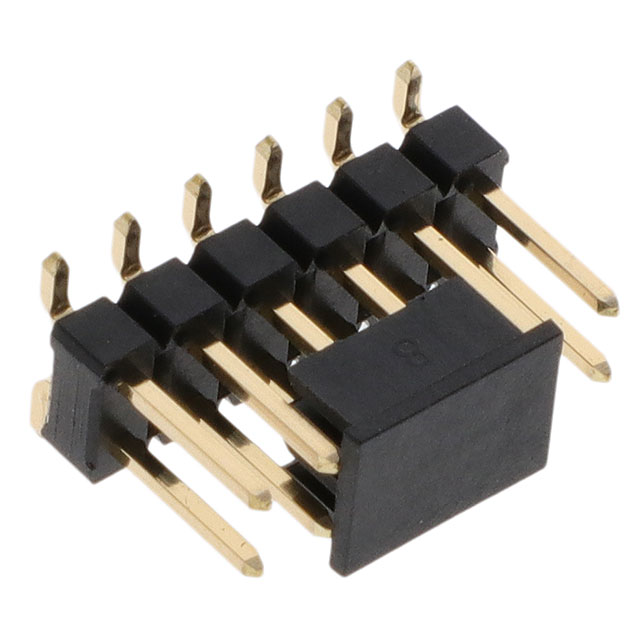

10129383-912001ALF

Product Detailed Parameters

• Description：CONN HEADER SMD 12POS 2.54MM
• Series：EconoStik™ 10129383
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header, Cuttable
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：12
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.230" (5.84mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.100" (2.54mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：1.00µin (0.025µm)
• Contact Finish - Post：-
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：Pick and Place
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：110VDC
