Product Detailed Parameters
- Description：CONN HEADER SMD 12POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

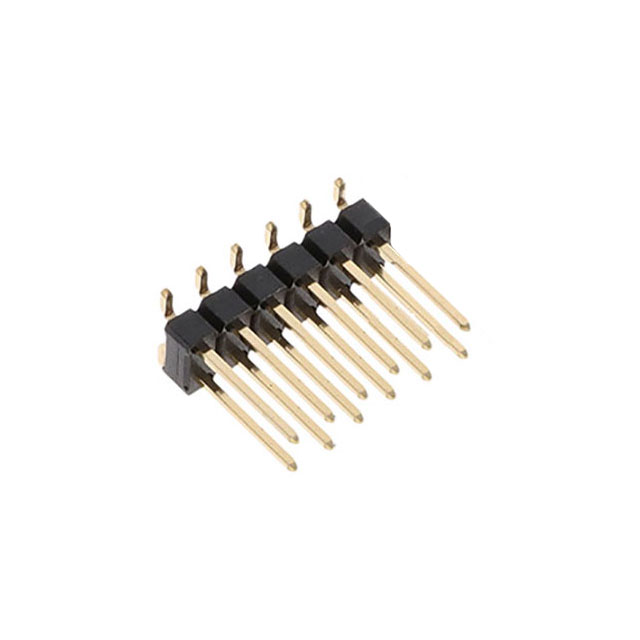

The Amphenol ICC (FCI) part number 10129383-912002BLF is a rectangular connector header belonging to the Econostik series. It features a surface mount installation type with a right-angle configuration. The connector provides 12 positions arranged in a single row, utilizing male pins for termination. The contact pitch is standardized at 0.100 inches (2.54 mm). The housing material is specified as thermoplastic, and the contacts are plated with gold to ensure reliable electrical performance. This component is designed for board-to-board interconnection applications requiring secure surface mounting.
Feature Summary
- Surface mount termination method ensures stable PCB attachment
- Single row layout with 12 male pin positions
- Standard 0.100 inch contact pitch for compatibility
- Gold-plated contacts for corrosion resistance
Applications
- Board-to-board interconnection systems
- General electronic circuit assemblies
- Industrial control hardware modules
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm exact plating thickness and housing color variations. Ensure that the surface mount footprint matches the design guidelines provided in the latest datasheet. Confirm RoHS compliance status through current regulatory declarations before finalizing procurement orders.
Selection Notes
Select this component when a low-profile surface mount header is required for signal routing. The 2.54 mm pitch allows for standard trace spacing on most PCB layouts. Consider the right-angle orientation for space-constrained vertical connections. Verify current carrying capacity requirements against the specific application load.
Part Context
This connector belongs to the Econostik family of rectangular connectors manufactured by Amphenol ICC (FCI). The series is known for providing cost-effective solutions for general-purpose interconnect needs. The brand transition from FCI to Amphenol maintains the established product specifications and mechanical dimensions associated with the original FCI designs.
FAQ
What is the contact pitch of this connector?
The contact pitch is 0.100 inches, which is equivalent to 2.54 millimeters.
Is this connector suitable for high-voltage applications?
Specific voltage ratings must be verified in the official datasheet; typical headers in this series are designed for general signal interconnection rather than high-voltage power distribution.
