Product Detailed Parameters

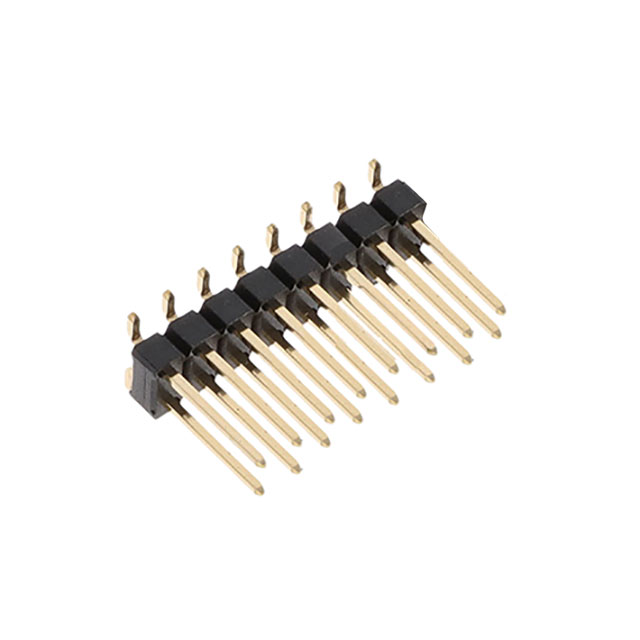

- Description：CONN HEADER SMD 16POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129383-916002BLF is a header connector from the EconoStik series. It features a surface mount mounting type with a 6-position configuration and a 0.100" (2.54mm) pitch. The connector utilizes gold contact plating for reliable signal transmission. Designed for board-to-board applications, it supports an operating temperature range of -55°C to 105°C, ensuring stability in demanding environments.
Feature Summary
- Surface mount design for automated PCB assembly
- Gold-plated contacts for enhanced conductivity
- EconoStik series construction for cost-effective connectivity
Applications
- Medical equipment systems
- Telecommunications infrastructure
- Long-life electronic systems requiring high reliability
Procurement Notes
Verify the specific ordering suffix BLF against official datasheets to confirm material composition and plating specifications. Ensure compatibility with standard reflow soldering profiles for surface mount technology. Cross-reference the manufacturer's latest documentation to confirm current production status and any potential engineering changes or obsolescence notices prior to final procurement decisions.
Selection Notes
Select this component when a low-profile, surface-mount header is required for dense circuit layouts. The 2.54mm pitch offers standard spacing compatibility with common mating connectors. Consider the -55°C to 105°C thermal rating for applications exposed to varying environmental conditions. Evaluate the EconoStik series benefits for budget-conscious designs without compromising essential electrical performance standards.
Part Context
This connector belongs to the EconoStik family, which provides economical interconnect solutions for general-purpose electronics. As a product of Amphenol ICC (FCI), it leverages established manufacturing processes for rectangular headers. The 6-position variant serves as a compact solution for signal routing in space-constrained printed circuit board assemblies within industrial and commercial sectors.
Replacement Considerations
Direct substitutes must match the 6-position count, 2.54mm pitch, surface mount orientation, and gold plating. Verify that alternative components maintain the same -55°C to 105°C operating temperature range and compatible mating interface dimensions to ensure mechanical and electrical interchangeability.
