Product Detailed Parameters

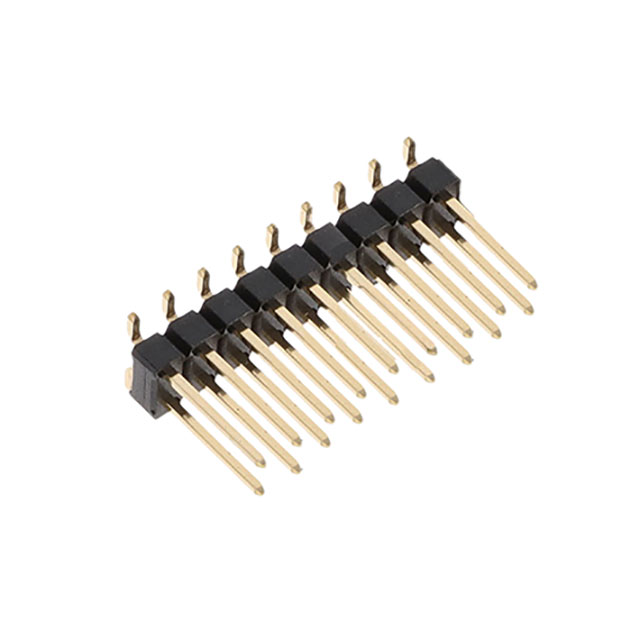

- Description：CONN HEADER SMD 18POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Pick and Place
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129383-918002ALF is a surface mount connector header featuring 18 positions with a 0.100 inch (2.54mm) pitch. Designed for board-to-board applications, this component utilizes a cuttable style configuration to allow for flexible assembly line processing. The contacts are finished with gold plating to ensure reliable signal transmission and corrosion resistance in electronic circuits.
Feature Summary
- Surface mount technology compatible design
- Cuttable header configuration for production flexibility
- Gold contact finish for enhanced conductivity
Applications
- General purpose electronic assemblies
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify the specific suffix 'ALF' indicates lead-free compliance and RoHS standards before procurement. Confirm that the cuttable format aligns with your pick-and-place machine capabilities. Ensure the 18-position count matches the target PCB footprint requirements to avoid rework or design modifications during the manufacturing phase.
Selection Notes
Select this component when a 2.54mm pitch surface mount header is required for board-to-board interconnects. The cuttable feature distinguishes it from fixed-length headers, offering inventory efficiency. Verify that the voltage rating of 110VDC meets the system's electrical isolation needs and that the gold plating thickness satisfies long-term reliability standards.
Part Context
This part belongs to the standard rectangular connector series manufactured by Amphenol ICC (FCI). It serves as a male pin header variant within the broader portfolio of surface mount interconnect solutions. The product supports high-volume manufacturing processes through its tape and reel packaging and automated assembly compatibility.
Replacement Considerations
Direct substitutes must maintain the 18-position count, 2.54mm pitch, and surface mount cuttable form factor. Cross-reference with other manufacturers offering identical mechanical dimensions and contact material specifications to ensure functional interchangeability without PCB layout changes.
