Product Detailed Parameters
- Description：CONN HEADER SMD 20POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Pick and Place
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

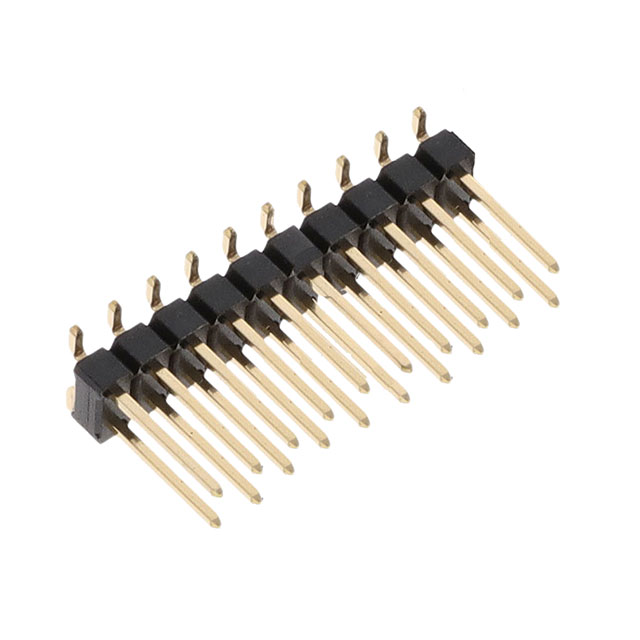

The Amphenol ICC (FCI) 10129383-920001ALF is a male header connector featuring a 2x10 pin configuration. It utilizes surface-mount technology for PCB attachment and includes shrouding to guide mating. The connector operates within a temperature range of -55°C to 105°C. It has a current rating of 3A and a voltage rating of 110VDC. The insulation material meets UL94 V-0 flammability standards, and the housing color is black.
Feature Summary
- Shrouded design for precise alignment during mating
- Surface-mount termination for automated assembly
- High flammability resistance rated at UL94 V-0
Applications
- General electronic equipment interconnects
- Industrial control systems
- Consumer electronics assemblies
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturer documentation may undergo revisions. Confirm that the 110VDC rating aligns with your circuit requirements rather than assuming higher industrial ratings. Ensure surface-mount footprint compatibility with your PCB design before finalizing procurement.
Selection Notes
Select this component for applications requiring low-profile vertical headers with integrated shrouds. The 2x10 layout suits compact signal or power distribution needs. Consider the 3A current capacity for load management. Verify that the 110VDC rating suffices for the target application environment.
Part Context
This part belongs to the ECONOSTIK series of headers and wire housings manufactured by Amphenol ICC. The series focuses on reliable connectivity for various electronic markets. The 10129383 prefix identifies the specific base product family within the broader connector portfolio.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pin count, pitch, and mounting style manually.
