Product Detailed Parameters

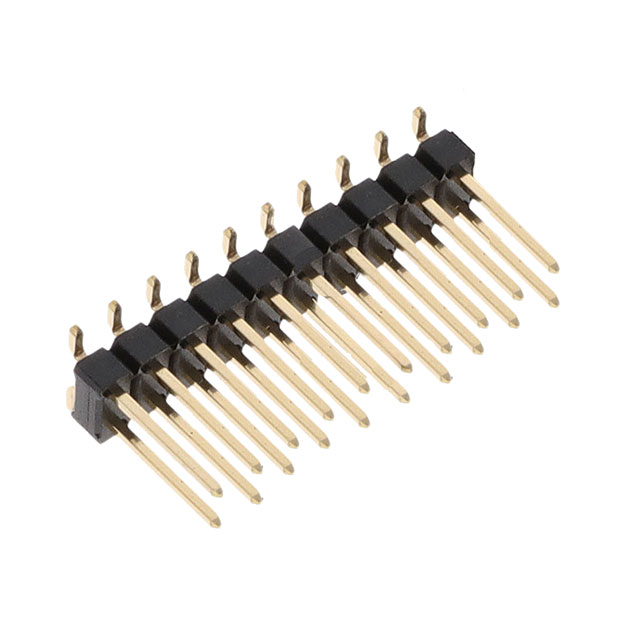

- Description：CONN HEADER SMD 20POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129383-920001BLF is a surface mount header connector belonging to the EconoStik series. It features a 20-position, single-row configuration with a 0.100-inch (2.54 mm) pitch. The connector utilizes square male pins with gold plating and is designed for board-to-board or cable applications. Rated for 3A current and 110VDC, it operates within a temperature range of -40°C to +105°C. The housing is black thermoplastic with UL94 V-0 flammability rating.
Feature Summary
- Surface mount design for automated PCB assembly
- Gold-plated square contacts for reliable signal transmission
- EconoStik series construction for cost-effective interconnect solutions
Applications
- General purpose electronic assemblies
- Industrial control systems
- Board-to-board interconnections
Procurement Notes
Verify the specific suffix BLF against the official datasheet to confirm plating thickness and material composition. Ensure the ordering quantity matches the manufacturer's standard packaging requirements. Confirm that the surface mount footprint aligns with the provided land pattern guidelines to prevent soldering defects during production.
Selection Notes
Select this component when a low-profile, surface mount header is required for high-density layouts. The 2.54mm pitch ensures compatibility with standard through-hole mating connectors. Consider the 3A current rating for power distribution needs. Verify thermal resistance requirements against the specified operating temperature range before integration into the final design.
Part Context
This connector is part of the EconoStik family from Amphenol ICC (FCI), formerly FCI. The series focuses on providing reliable, cost-effective interconnect solutions for commercial and industrial electronics. The brand transition from FCI to Amphenol ICC maintains the legacy specifications while integrating broader global manufacturing capabilities.
Replacement Considerations
Direct substitutes are not explicitly listed in public documentation. Evaluate other EconoStik headers with matching 20-position, SMD, 2.54mm pitch configurations. Verify mechanical dimensions and contact plating compatibility before replacing.
