Product Detailed Parameters

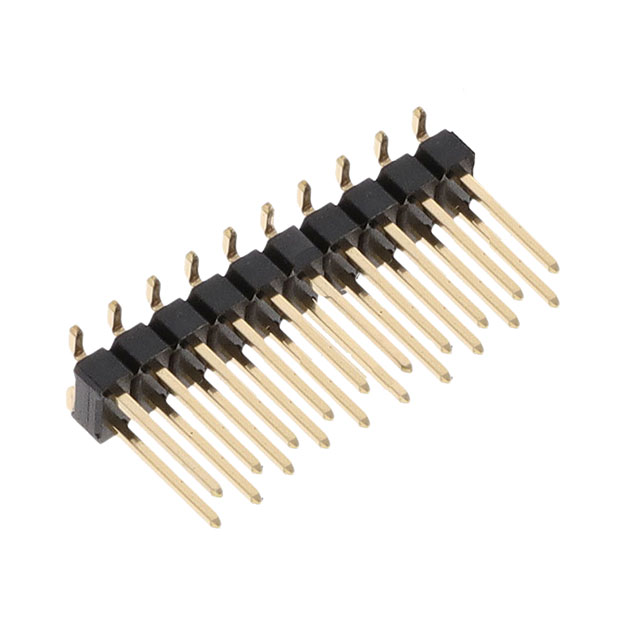

- Description：CONN HEADER SMD 20POS 2.54MM
- Series：EconoStik™ 10129383
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129383-920002BLF is a surface mount header connector featuring twenty positions with a 2.54mm pitch. It belongs to the Econostik series and utilizes a cuttable design for flexible board integration. The component supports a voltage rating of 110VDC and carries a current rating of 3A. Packaged in bulk, this connector is designed for automated assembly processes.
Feature Summary
- Cuttable header design allows for custom pin count configuration on the PCB.
- Surface mount termination facilitates automated pick-and-place manufacturing.
- Econostik series construction provides reliable electrical connectivity.
Applications
- General purpose electronic assemblies requiring board-level interconnects
- Consumer electronics hardware integration
- Industrial control system circuit boards
Procurement Notes
Verify the specific suffix BLF against the manufacturer's official datasheet to confirm plating specifications and material composition. Ensure that the surface mount footprint matches the target PCB layout dimensions. Confirm RoHS compliance status through the latest product change notices before final procurement approval.
Selection Notes
Select this component when a low-cost, surface mount header with customizable length is required. The 2.54mm spacing ensures compatibility with standard through-hole and surface mount mating connectors. Consider the 3A current rating for power distribution needs within the target application environment.
Part Context
This connector is part of the Amphenol FCI portfolio, now integrated into Amphenol ICC. The company specializes in interconnect solutions for information technology and commercial electronics markets. This specific model represents a standard solution for cost-sensitive board-to-board or cable-to-board applications.
Replacement Considerations
Direct substitutes are not explicitly confirmed in public documentation. Verify mechanical footprint compatibility and electrical ratings if considering alternative manufacturers. Consult the official distributor database for cross-reference lists based on the base part number 10129383.
