10130248-005LF

Edgeboard Connectors Overview

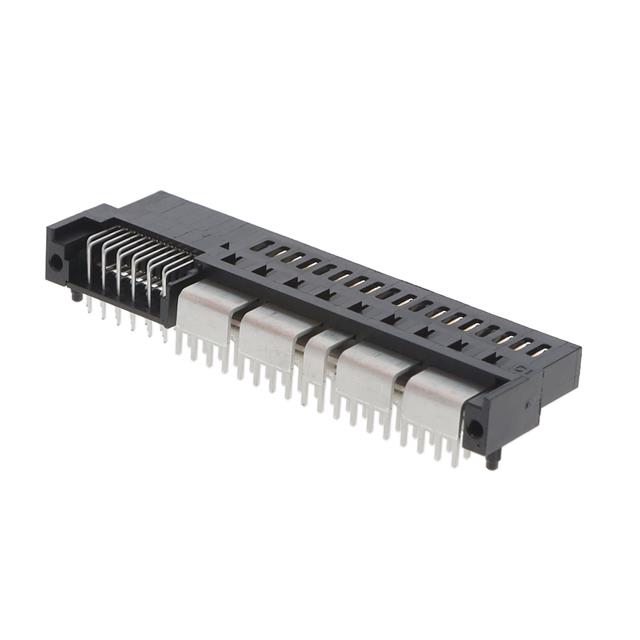

The Amphenol ICC (FCI) 10130248-005LF is a dual-edge female connector designed for board-to-board interconnection. It features a total of 60 positions, configured as 24 signal pins and 36 power pins. The component utilizes a gold or GXT™ contact plating finish on black housing. It is specified for vertical installation and supports standard edge card applications requiring robust electrical connectivity.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board mating
• Integrated power and signal pin separation
• Gold or GXT™ contact plating for corrosion resistance

Edgeboard Connectors Applications

• Server backplane interconnects
• High-density computing modules
• Telecommunications infrastructure boards

Edgeboard Connectors Procurement Notes

Verify the specific contact plating variant (gold vs. GXT) required for your application environment, as availability may vary by finish. Confirm that the 60-position layout matches your PCB footprint exactly. Check current lifecycle status with the manufacturer to ensure long-term supply stability for production runs.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface is required for mixed signal and power routing in a compact form factor. Ensure the host board design accommodates the vertical mounting style and the specific 24/36 pin distribution. Validate mechanical retention requirements against the connector's shroud design.

Edgeboard Connectors Part Context

This part belongs to the Amphenol ICC (FCI) edge connector portfolio, which provides reliable interconnect solutions for high-performance computing and networking equipment. The series is engineered to meet stringent industry standards for signal integrity and mechanical durability in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Verify compatibility with existing PCB layouts before considering alternative vendors or modified part numbers from the same manufacturer family.
