10131318-02111G0LF

Overview

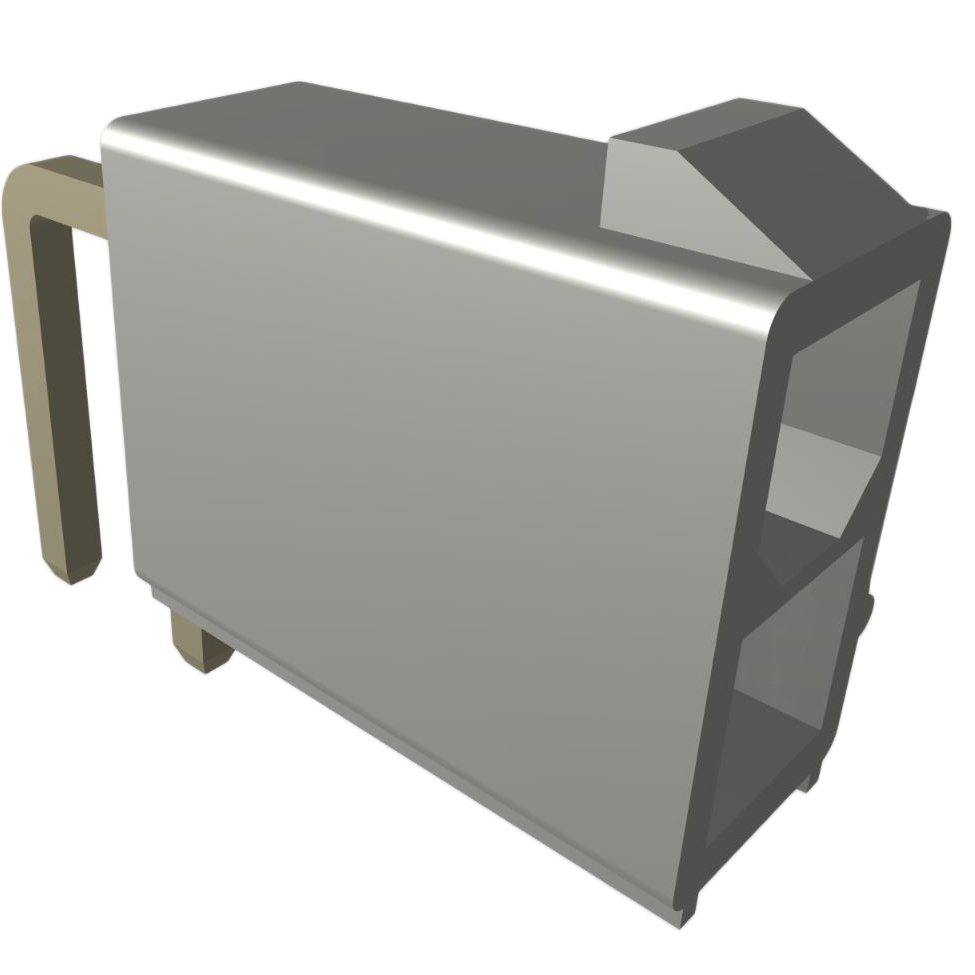

The Amphenol ICC (FCI) part number 10131318-02111G0LF is a Minitek Power4.2 series power-to-board connector header. It features a 4.2 mm pitch and a dual-row configuration with 2 positions. The contacts are constructed from copper and plated with gold. Designed for vertical mounting, the unit supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. The housing is black, and the component provides an insulation resistance of 1 GOhm.

Feature Summary

• Dual-row vertical header design for board-level power distribution
• Gold-plated copper contacts ensuring reliable conductivity
• High current capacity suitable for demanding power applications

Applications

• Industrial equipment power distribution
• Factory automation systems
• Heavy machinery control boards

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm contact plating thickness and housing color variations. Confirm availability through authorized distributors as this item may be subject to factory special order requirements. Ensure the selected variant matches the required mechanical orientation and pin count for the target PCB layout.

Selection Notes

Select this component when a low-profile, high-current connection is required in a vertical orientation. The 4.2 mm pitch allows for robust spacing between power traces. Verify that the PCB footprint accommodates the dual-row header dimensions and that the mating receptacle aligns with the Minitek Power4.2 system specifications.

Part Context

This connector belongs to the Minitek Power4.2 family produced by Amphenol FCI. The series is engineered for power-to-board applications, offering a balance of compact size and high electrical performance. It is designed to integrate into larger interconnect systems where reliable power delivery is critical.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
