Product Detailed Parameters

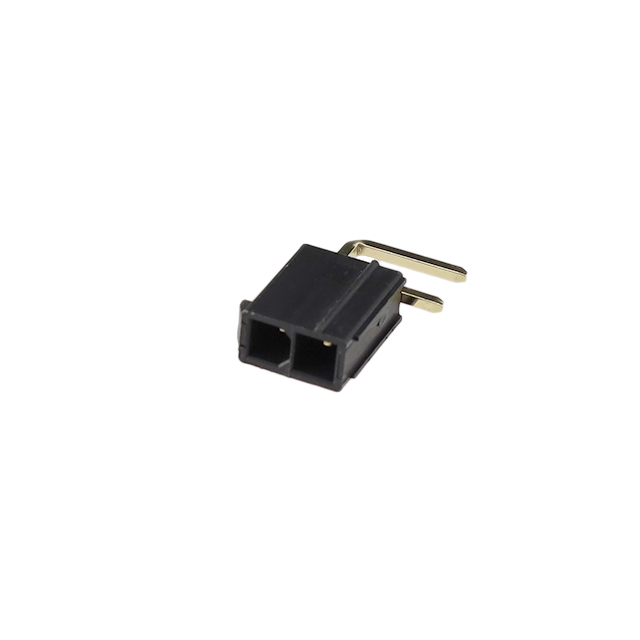

- Description：CONN HEADER R/A 2POS
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview
The Amphenol ICC (FCI) part number 10131318-02221G0LF is a Minitek Power4.2 series power connector designed for board-to-board applications. It features a 4.2 mm pitch and a dual-row configuration with two positions per row, totaling four contact points. The connector utilizes copper contacts with a 30-micron gold plating finish to ensure reliable conductivity. Rated for a current of 12.5 A, it supports an operating temperature range from -40°C to +105°C. The housing is constructed from black thermoplastic material, and the unit is designed for right-angle surface mount installation.
Feature Summary
- Dual-row header design providing high-density power distribution capabilities
- Gold-plated copper contacts ensure stable electrical performance and corrosion resistance
- Right-angle mounting style facilitates compact PCB layout integration
Applications
- Industrial control systems requiring robust power connections
- Telecommunications infrastructure equipment
- Server and storage device power distribution boards
Procurement Notes
Verify the specific ordering suffix against the manufacturer's latest datasheet to confirm contact plating thickness and housing material specifications. Ensure that the selected variant matches the required right-angle orientation and dual-row configuration for your circuit board design. Cross-reference the part number with official Amphenol FCI documentation to validate availability and compliance status before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, high-current solution is needed for space-constrained designs. The 4.2 mm pitch allows for adequate spacing between power traces while maintaining a compact footprint. Consider the thermal rating and mechanical stability requirements of the application to ensure compatibility with the soldering process and operational environment.
Part Context
This component belongs to the Minitek Power4.2 family, which is engineered for demanding power delivery applications. The series offers various pin counts and mounting styles to accommodate different system architectures. As an Amphenol FCI product, it adheres to strict quality standards for signal integrity and durability in electronic interconnect solutions.
Replacement Considerations
Consult official Amphenol FCI substitution guides for verified alternative part numbers within the same Minitek Power4.2 series. Ensure any substitute maintains identical pitch, row configuration, and current ratings to preserve system functionality.
