Product Detailed Parameters

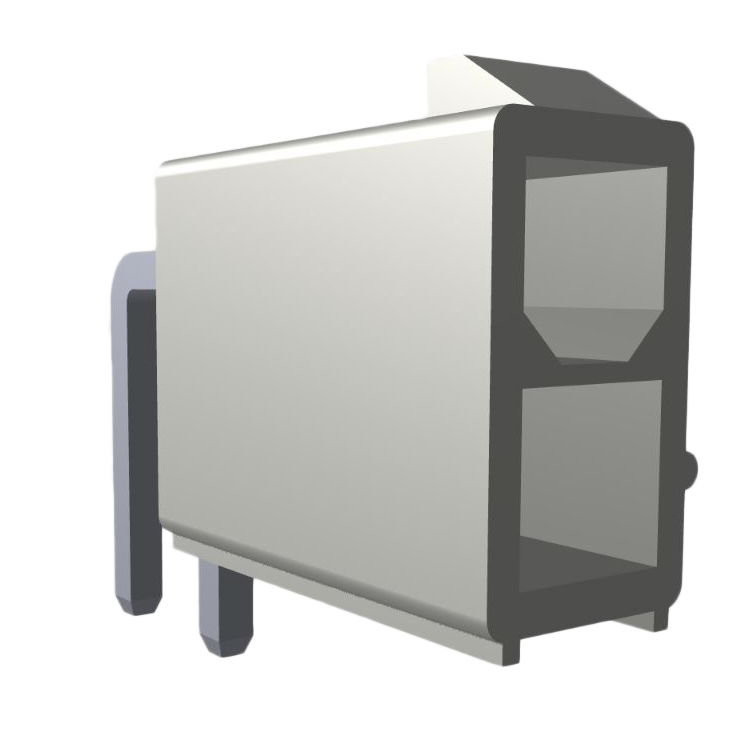

- Description：10131318-02412G0LF-MTK4.2 HC DR
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131318-02412G0LF is a Minitek Pwr 4.2 HCC wire-to-board header connector. It features a 2-position configuration with a 4.2 mm pitch and utilizes gold-plated copper contacts for reliable conductivity. Designed for right-angle through-hole mounting, this component supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. The natural-colored housing provides structural insulation.
Feature Summary
- Right-angle through-hole mounting design for compact board integration
- Gold-plated copper contacts ensure stable electrical performance
- High current capacity suitable for power distribution applications
Applications
- Wire-to-board power connections in industrial equipment
- Power supply unit interconnects
- Consumer electronics internal wiring
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm contact plating thickness and material specifications. Ensure the selected variant matches the required right-angle orientation and through-hole termination style for your PCB layout. Cross-reference the datasheet for precise mechanical dimensions and mating force requirements before finalizing procurement orders.
Selection Notes
Select this connector when a low-profile, high-current solution is required for right-angle power routing. The 4.2 mm pitch accommodates substantial conductors while maintaining a compact footprint. Verify that the operating environment remains within the specified thermal limits and that the PCB hole pattern aligns with the through-hole pin spacing for proper assembly.
Part Context
This component belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), designed for robust power transmission. The series offers various position counts and mounting styles to support diverse electronic assemblies. As an FCI product, it adheres to strict quality standards for durability and signal integrity in demanding environments.
Replacement Considerations
Consult official substitution lists for compatible headers with identical 4.2 mm pitch and right-angle configurations. Ensure any replacement maintains the same current rating and contact plating specifications to guarantee electrical continuity and mechanical fit.
