Product Detailed Parameters
- Description：CONN HEADER R/A
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

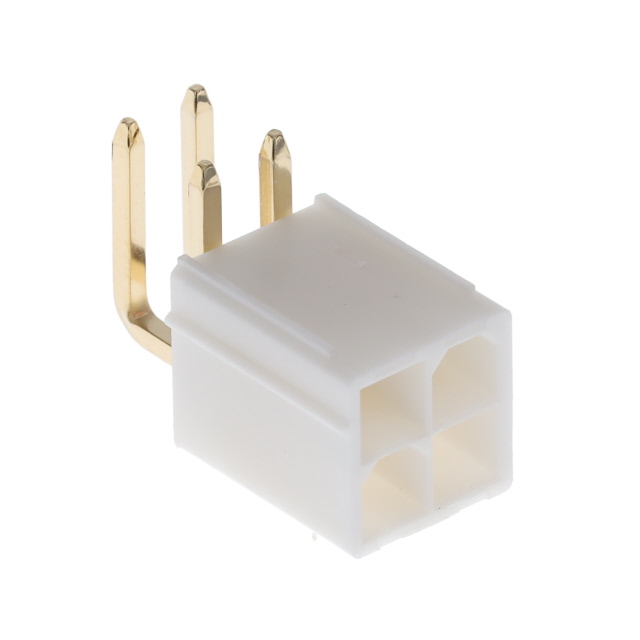

The Amphenol ICC (FCI) part number 10131318-041110PLF is a Minitek Power4.2HCC double row right-angle header designed for power-to-board applications. It features 4 positions with a 4.2 mm pitch and utilizes tin-plated copper contacts rated for 12.5 A current and 600 VAC voltage. The connector employs through-hole solder termination, operates within a -40°C to +105°C temperature range, and has a black nylon 6.6 housing with an insulation resistance of 1 GOhms.
Feature Summary
- Double row right-angle header configuration for compact power distribution
- Tin-plated copper contacts ensure reliable conductivity
- Nylon 6.6 housing provides thermal stability up to 105°C
Applications
- Power distribution in industrial control systems
- Server and storage equipment power interfaces
- Telecommunications infrastructure power connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm contact plating and housing material specifications. Ensure the selected variant matches the required current rating and pitch for the target application. Cross-reference the datasheet for precise mechanical dimensions and mounting requirements before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, high-current connection is required on a printed circuit board. The right-angle design facilitates efficient space utilization in dense assemblies. Verify that the 4.2 mm pitch aligns with the mating connector footprint and that the through-hole termination method is compatible with the manufacturing process.
Part Context
This connector belongs to the MinitekPwr 4.2 series by Amphenol FCI, engineered for robust power delivery in demanding environments. The series is characterized by its durable construction and standardized pin spacing, making it suitable for various electronic systems requiring reliable electrical interconnections between power sources and circuit boards.
Replacement Considerations
Consult the official Amphenol cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, row count, and current ratings to guarantee mechanical and electrical compatibility without redesigning the host system.
