10131318-041210PLF

Overview

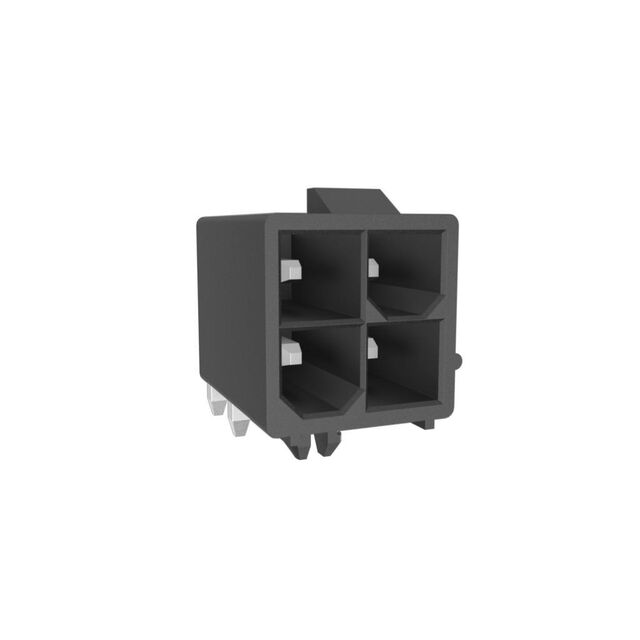

The Amphenol ICC (FCI) part number 10131318-041210PLF is a Minitek Power 4.2 series right-angle header connector designed for power-to-board applications. It features a 4.2 mm pitch and a dual-row configuration with four positions. The contacts are tin-plated copper pins rated for 12.5 A current and 600 VAC voltage. Constructed with a black nylon 6.6 housing, it supports through-hole solder termination and operates within a temperature range of -40°C to +105°C.

Feature Summary

• Dual-row right-angle header design for compact power distribution
• Tin-plated copper contacts ensure reliable conductivity
• Nylon 6.6 housing provides thermal stability up to 105°C

Applications

• Industrial control systems
• Power supply modules
• Server infrastructure equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and housing material specifications. Ensure that the required pin count and row configuration match the exact project requirements before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, high-current connection is required in space-constrained environments. The right-angle orientation facilitates efficient board layout routing while maintaining robust mechanical stability during operation.

Part Context

This connector belongs to the Minitek Power 4.2 family, which specializes in high-density power interconnects. The series is engineered to support demanding industrial and commercial electronics by providing stable electrical connections with standardized spacing dimensions.

Replacement Considerations

Consult the official Amphenol FCI cross-reference documentation for verified substitute part numbers. Do not assume compatibility based on similar pitch or position counts without confirming mechanical and electrical parameter alignment.
