Product Detailed Parameters

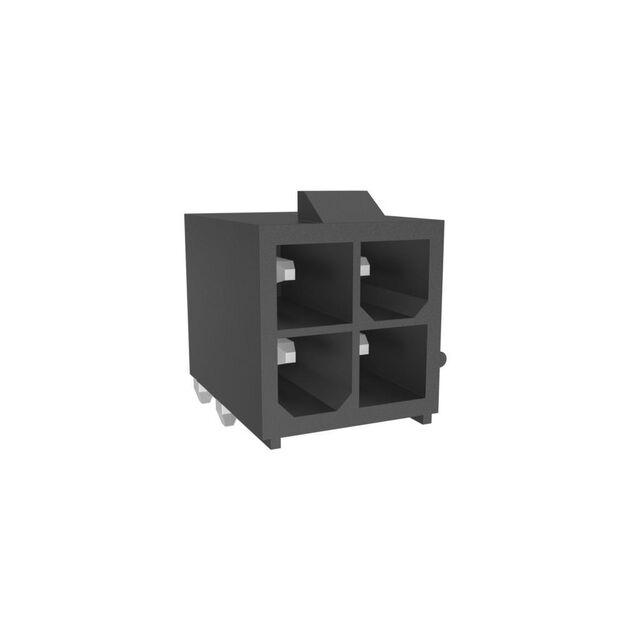

- Description：CONN HEADER R/A 4POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray,Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview
The Amphenol ICC (FCI) part number 10131318-04121G0LF is a Minitek Power 4.2 series power-to-board connector. It features a double row header with four positions and a 4.2 mm pitch. The component has a right-angle mounting orientation and utilizes copper contacts with gold plating. Rated for 12.5 A current, it operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhm.
Feature Summary
- Double row high-current power distribution design
- Right-angle board mounting configuration
- Gold-plated copper contact system
Applications
- Server power distribution systems
- Storage device internal power connections
- Telecommunications equipment power interfaces
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm exact pin count, plating thickness, and mechanical orientation. Confirm RoHS compliance status and lead time requirements directly with the supplier prior to procurement. Ensure compatibility with mating receptacles in the same Minitek Power 4.2 family.
Selection Notes
Select this component when a right-angle, double-row power interface is required for high-current applications. Verify that the 4.2 mm pitch and 12.5 A rating align with the system's electrical and spatial constraints. Ensure the operating temperature range meets the environmental specifications of the target application.
Part Context
This connector belongs to the Minitek Power 4.2 series by Amphenol FCI, designed for robust power delivery in compact spaces. The series supports various configurations for server and storage applications, emphasizing reliability and high current capacity within standard industrial temperature ranges.
Replacement Considerations
Consult official substitution lists for compatible alternatives within the Minitek Power 4.2 family. Verify mechanical footprint and electrical ratings before replacing.
