10131318-04221G0LF

Overview

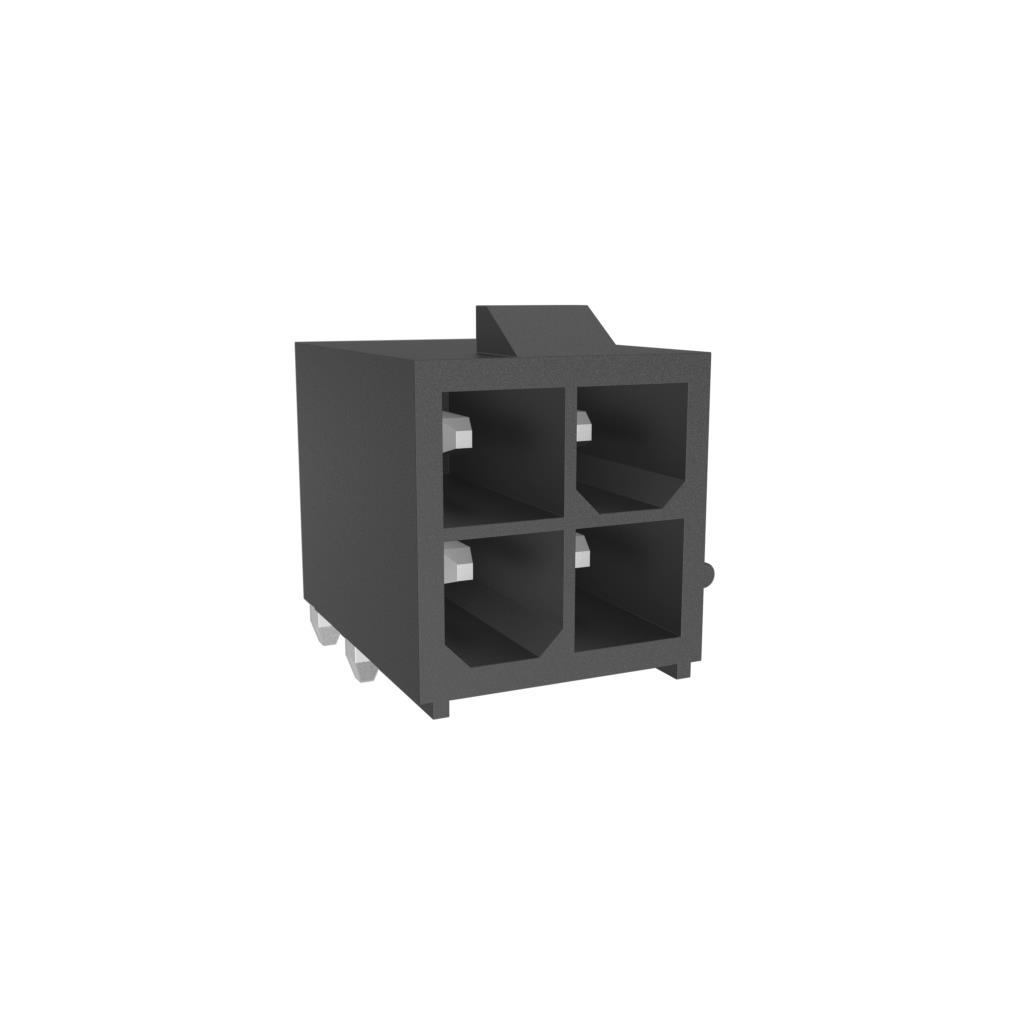

The Amphenol ICC (FCI) part number 10131318-04221G0LF is a Minitek Pwr 4.2 High Current Series header connector designed for power-to-board applications. It features a right-angle, double-row configuration with four positions and a 4.2 mm pitch. The contacts are constructed from copper and finished with gold plating to ensure reliable conductivity. Rated for 12.5 A per contact, the unit supports through-hole solder termination. The housing is black thermoplastic, operating within a temperature range of -40°C to +105°C.

Feature Summary

• High current capacity rated at 12.5 A per contact
• Right-angle design for compact board integration
• Gold-plated copper contacts for corrosion resistance

Applications

• Power distribution in server systems
• Storage device internal connections
• Communication equipment power interfaces

Procurement Notes

Verify the specific suffix G0LF against official manufacturer documentation to confirm gold plating thickness and material composition. Ensure the right-angle orientation matches the mechanical layout requirements. Confirm RoHS compliance status through the latest datasheet before finalizing procurement specifications.

Selection Notes

Select this component when high current density is required in a limited vertical space. The right-angle form factor facilitates efficient cable routing. Verify that the 4.2 mm pitch aligns with the mating connector footprint. Ensure the thermal environment remains within the specified -40°C to +105°C operational limits.

Part Context

This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI). The series specializes in high-current power delivery solutions for dense electronic assemblies. It integrates signal and power capabilities within a robust mechanical structure suitable for demanding industrial and data center environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
