Product Detailed Parameters

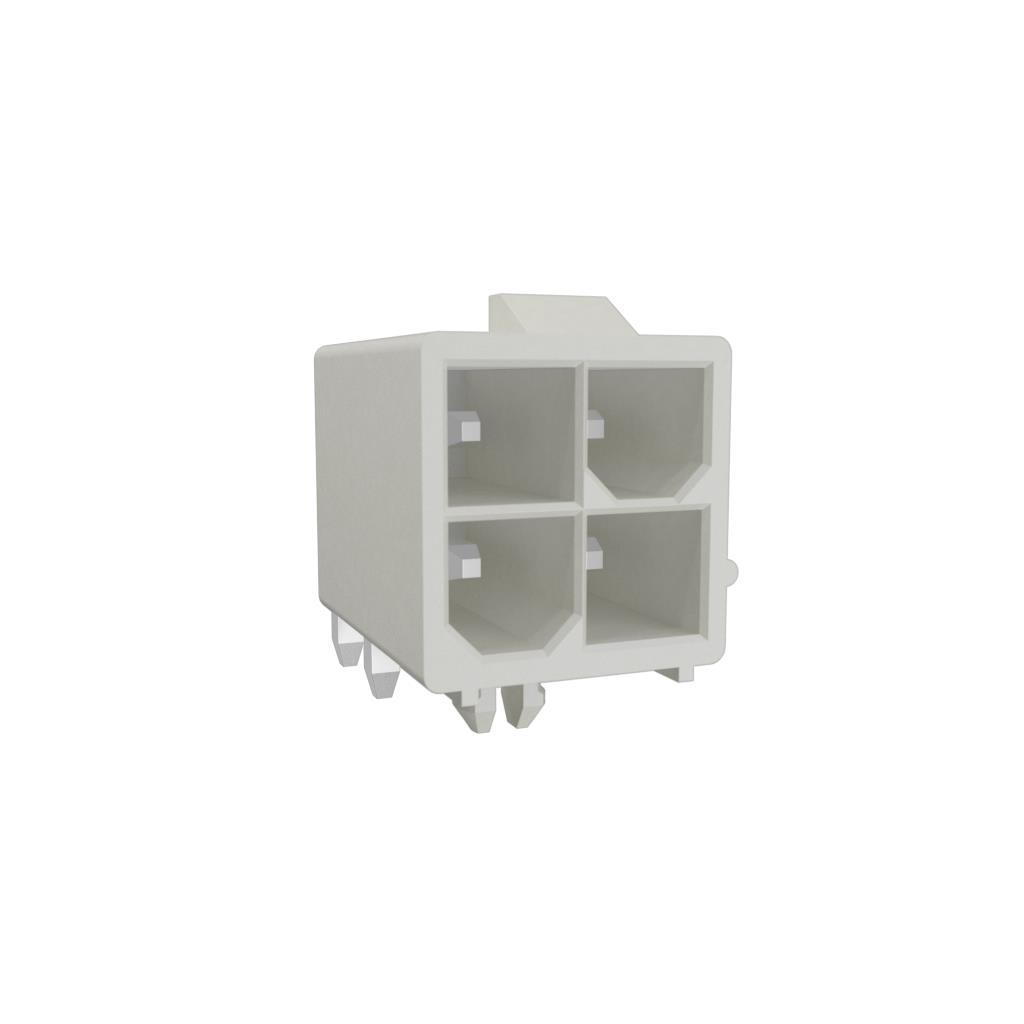

- Description：10131318-04512GPLF-MTK4.2 DR 04P
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131318-04512GPLF is a Minitek Power4.2HCC double-row right-angle header designed for power-to-board applications. It features a 4.2 mm pitch and contains 10 positions with tin-plated copper contacts. The connector supports a current rating of 12.5 A and a voltage rating of 600 VAC, operating within a temperature range of -40°C to +105°C. Constructed with a black nylon 6.6 housing, it utilizes through-hole solder termination and provides an insulation resistance of 1 GOhms.
Feature Summary
- Double-row right-angle design facilitates compact power distribution on printed circuit boards.
- Tin-plated copper contacts ensure reliable electrical conductivity and corrosion resistance.
- Nylon 6.6 housing material provides structural integrity and thermal stability.
Applications
- Power distribution in industrial equipment
- Server and storage system power interfaces
- Communication infrastructure power connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and housing color specifications. Ensure that the selected variant matches the required pin count and termination style for the target PCB layout. Confirm availability status directly with authorized distributors as supply conditions may vary.
Selection Notes
Select this component when a high-current power interface with a 4.2 mm pitch is required. The right-angle configuration is suitable for space-constrained designs needing vertical board clearance. Verify that the 12.5 A current rating aligns with the system's power requirements and that the through-hole mounting method is compatible with the assembly process.
Part Context
This connector belongs to the MinitekPwr 4.2 series by Amphenol FCI, specialized for robust power delivery. The series offers various position counts and termination options to support diverse power-to-board architectures. It is engineered for environments requiring durable electrical connections with standardized spacing dimensions.
Replacement Considerations
Consult the official Amphenol FCI cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical pitch, row configuration, and current ratings to preserve system compatibility.
