10131318-06111G0LF

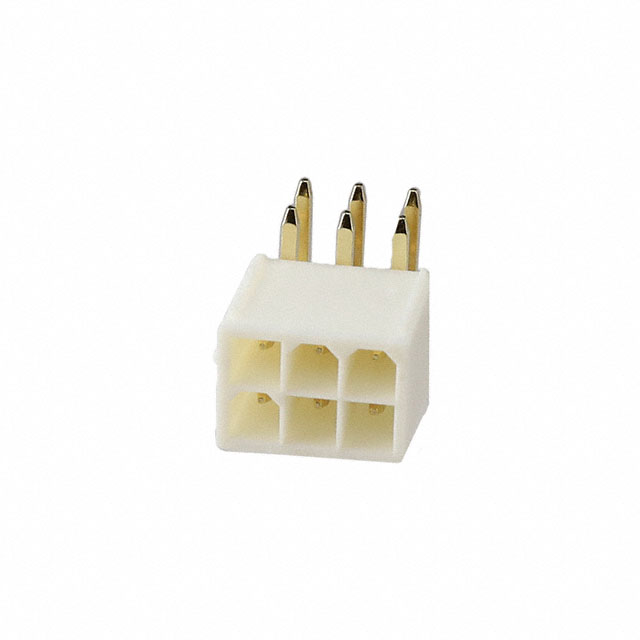

Description：CONN HEADER R/A 6POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:511251895264 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 6POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.404" (10.26mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：Glow Wire Compliant
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10131318-06111G0LF

Overview

The Amphenol ICC (FCI) part number 10131318-06111G0LF is a Minitek Power 4.2 High Current header connector designed for power-to-board applications. It features a right-angle mounting style with two rows and six positions, utilizing a 4.2 mm pitch. The contacts are male pins made of copper with a gold plating finish. Rated for 12.5 A per contact, the connector operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 1 GOhms.

Feature Summary

High current capacity rated at 12.5 A per contact
Gold-plated copper contacts for reliable conductivity
Right-angle vertical board mounting configuration
Dual-row design with 4.2 mm spacing

Applications

Power distribution in industrial equipment
Server and storage system power interfaces
High-current circuit board interconnections

Procurement Notes

Verify the specific suffix 'G0' against official manufacturer documentation to confirm the exact gold plating thickness and material specifications. Ensure compatibility with mating connectors regarding current ratings and thermal limits. Confirm availability status as supply conditions may vary by region.

Selection Notes

Select this component when high current handling is required in a compact right-angle form factor. The 4.2 mm pitch allows for robust trace routing compared to standard signal headers. Verify that the PCB layout accommodates the dual-row geometry and that the operating environment stays within the specified -40°C to +105°C range.

Part Context

This connector belongs to the Minitek Pwr 4.2 series, which is engineered for demanding power delivery scenarios. The series emphasizes high current capabilities and durability in dense electronic assemblies. It serves as a critical interface for transferring significant electrical power between boards or from cables to printed circuit boards.
