Product Detailed Parameters
- Description：CONN HEADER R/A
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray,Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

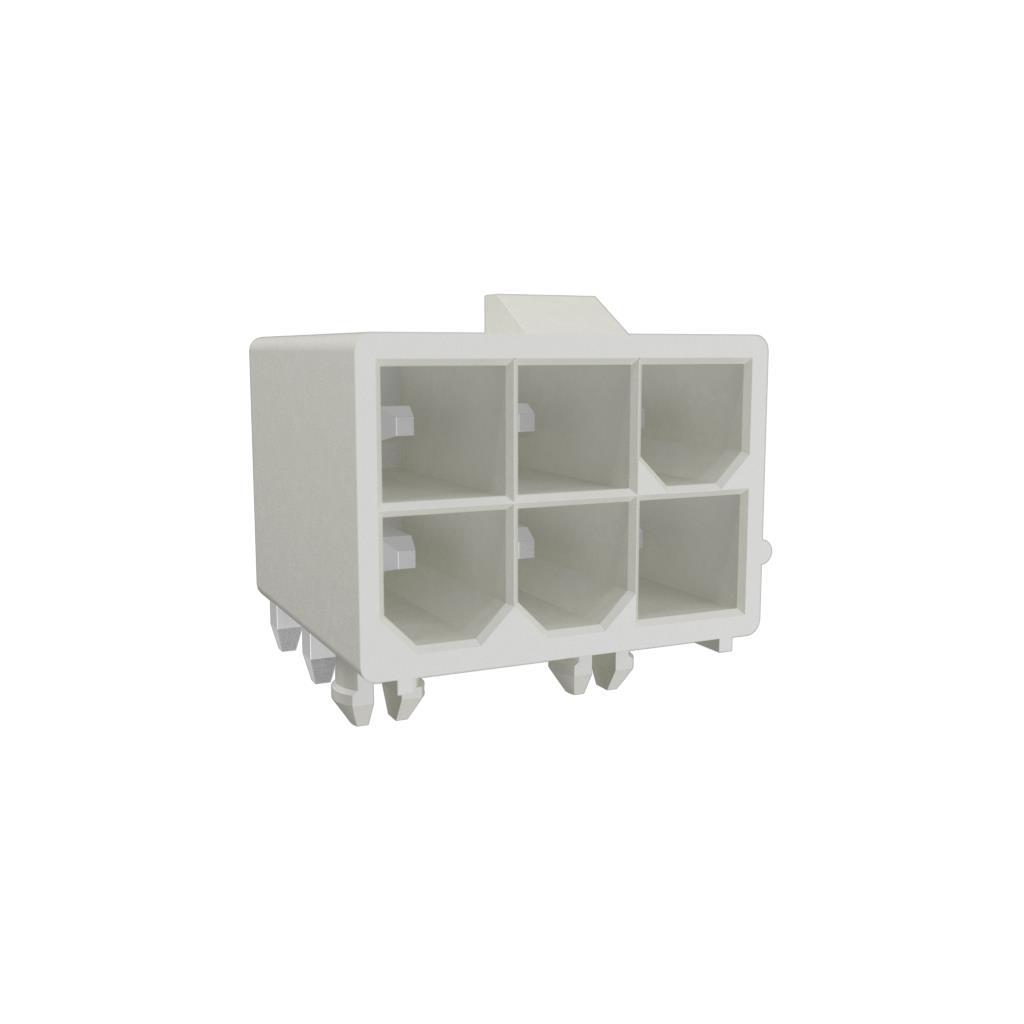

The Amphenol ICC (FCI) 10131318-062110PLF is a Minitek Power4.2 high-current header connector designed for dual-row, right-angle through-hole PCB mounting. It features 6 positions with a 4.2 mm pitch and male pin contacts made of copper alloy with tin plating. The connector supports a current rating of 12.5 A and a voltage rating of 600 VAC. Operating within a temperature range of -40°C to +105°C, it utilizes black Nylon 6.6 insulation and offers an insulation resistance of 1 GOhms.
Feature Summary
- Dual-row right-angle design for efficient board space utilization
- High-conductivity copper alloy terminals ensure reliable electrical contact
- Tin-plated finish provides corrosion resistance for stable connections
- Robust Nylon 6.6 insulation material withstands thermal stress
Applications
- Power distribution in server systems
- Storage device internal power connections
- Communication equipment power interfaces
- Industrial control board power headers
Procurement Notes
Verify the specific ordering suffix to confirm terminal plating and packaging type before procurement. Ensure the selected variant matches the required current capacity and mechanical orientation for the target PCB layout. Confirm RoHS compliance status if environmental regulations apply to the final assembly. Cross-reference the manufacturer datasheet for precise mating force and retention specifications.
Selection Notes
Select this component when a compact, high-current solution is required for vertical power delivery on dense circuit boards. The 4.2 mm pitch accommodates substantial conductors while maintaining a low profile. Evaluate the tin plating option against environmental exposure requirements to balance cost and longevity. Ensure the right-angle configuration aligns with the system's cable routing constraints.
Part Context
This part belongs to the Minitek Power4.2 series by Amphenol ICC (FCI), a line specialized for high-power applications. The series is engineered for durability in demanding environments such as data centers and industrial machinery. It complements other FCI solutions like PwrBlade and HPCE for comprehensive power management strategies.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 6-position count, dual-row configuration, and right-angle through-hole mounting style. Verify that alternative connectors support the same 12.5 A current rating and 600 VAC voltage limit. Ensure compatible terminal materials and plating are available to maintain signal integrity and corrosion resistance.
