Product Detailed Parameters
- Description：CONN HEADER R/A 8POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

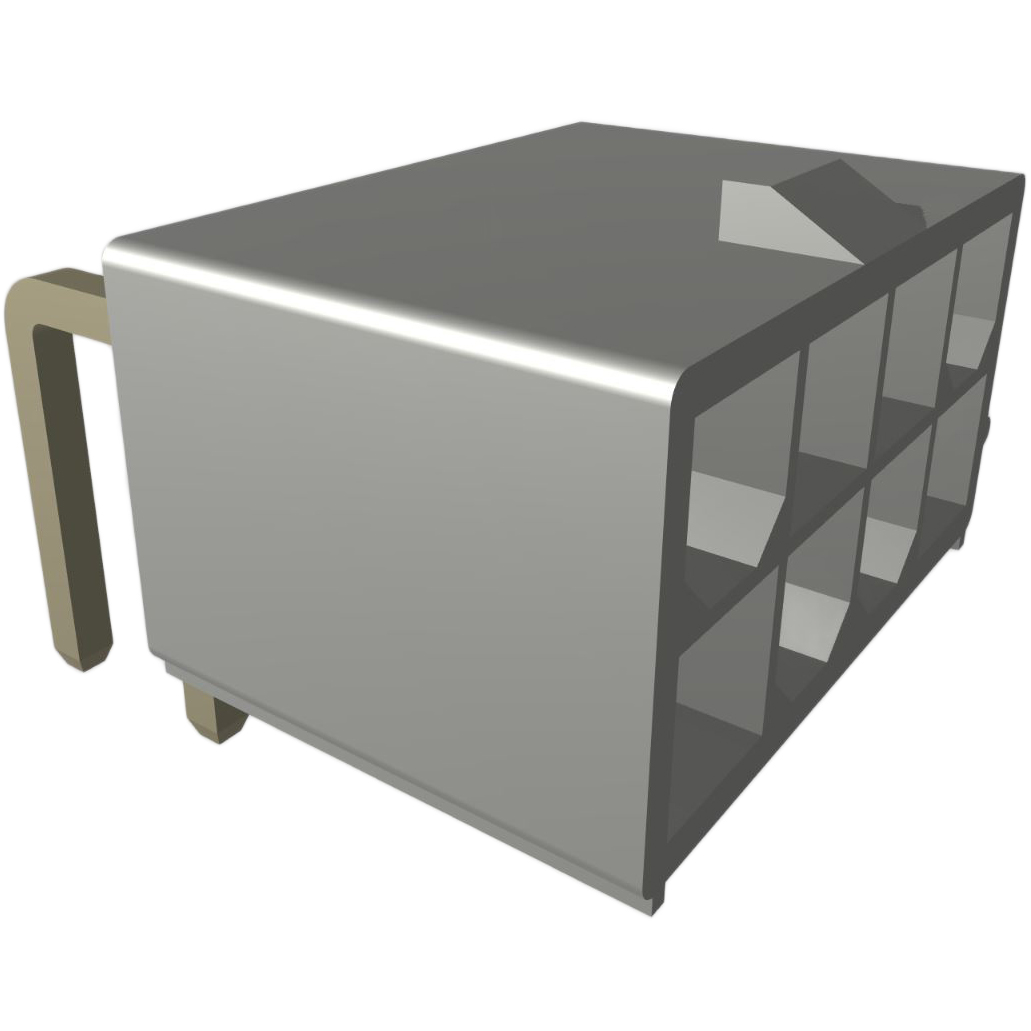

The Amphenol ICC (FCI) 10131318-0811100LF is a Minitek Pwr 4.2 Higher Current Connector (HCC) header designed for power-dense applications. It features an 8-position, 2-row configuration with a 4.20mm pitch. The connector utilizes through-hole right-angle termination and tin-plated copper contacts. Rated for 12.5A current, it operates within a temperature range of -40°C to +105°C. The housing is natural UL94 V-0 rated plastic.
Feature Summary
- Designed for high-current power delivery in compact spaces
- Right-angle through-hole mounting for board integration
- Dual-row contact arrangement for increased capacity
Applications
- Power distribution modules
- Server and storage equipment
- Industrial control systems
Procurement Notes
Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the right-angle orientation matches the mechanical design constraints of the target assembly. Ensure the tin plating specification meets the required solderability and corrosion resistance standards for the intended operating environment.
Selection Notes
Select this component when a robust, high-current solution is required for vertical space-constrained designs. The 4.20mm pitch allows for significant current handling compared to smaller pitches. Consider the right-angle form factor for efficient PCB layout routing. Validate thermal management requirements against the 105°C maximum operating limit.
Part Context
This part belongs to the Minitek Pwr 4.2 series by Amphenol FCI, which specializes in higher current connectors. The series is engineered to meet the demands of modern electronics requiring reliable power transmission in dense configurations. It represents a standard interconnect solution within the broader Amphenol portfolio for industrial and data communication sectors.
Replacement Considerations
Direct substitutes must match the 8-position count, 4.20mm pitch, right-angle orientation, and through-hole termination. Verify that alternative components support equivalent current ratings and maintain compatible housing flammability ratings.
