Product Detailed Parameters
- Description：CONN HEADER R/A 8POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

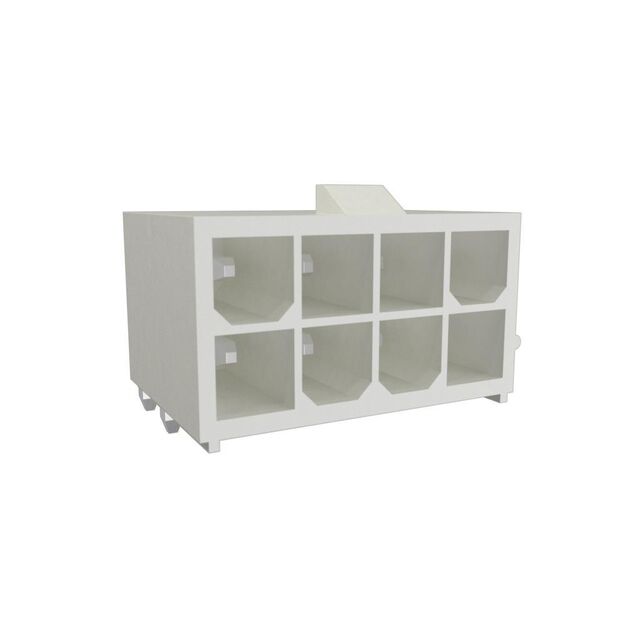

The Amphenol ICC (FCI) part number 10131318-08111G0LF is a Power to the Board header connector from the MinitekPwr 4.2 series. It features an 8-position configuration with a 4.2 mm pitch and a right-angle mounting orientation. The connector utilizes copper contacts plated with gold for conductivity and corrosion resistance. Rated for 600 V and 12.5 A, it operates within a temperature range of -40 °C to +105 °C. The housing is constructed from nylon and is black in color.
Feature Summary
- Right-angle vertical board mounting design
- Gold-plated copper contact system
- High voltage insulation capability
Applications
- Server power distribution
- Storage equipment connections
- Communication device power interfaces
Procurement Notes
Verify current availability status as this component may be subject to specific ordering requirements or limited stock. Confirm that the gold plating specification matches the exact suffix requirements for your application environment. Ensure the right-angle form factor aligns with the mechanical constraints of the target PCB layout before finalizing procurement orders.
Selection Notes
Select this connector when high voltage isolation is required alongside high current capacity in a compact footprint. The 4.2 mm pitch allows for robust power transmission while maintaining a low profile suitable for dense electronic assemblies. Verify compatibility with mating sockets within the MinitekPwr 4.2 family to ensure proper electrical engagement and mechanical stability.
Part Context
This component belongs to the MinitekPwr 4.2 series by Amphenol FCI, designed for demanding power delivery applications. The series is characterized by its ability to handle significant current loads while maintaining signal integrity in server and storage environments. The right-angle header variant facilitates efficient space utilization on printed circuit boards where vertical clearance is restricted.
Replacement Considerations
Compatible substitutes include other 8-position, 4.2mm pitch right-angle headers from the MinitekPwr 4.2 series, such as 10131318-08111GPLF or 10131318-081110RLF, provided the plating and housing material specifications are verified.
