Product Detailed Parameters
- Description：CONN HEADER R/A 8POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

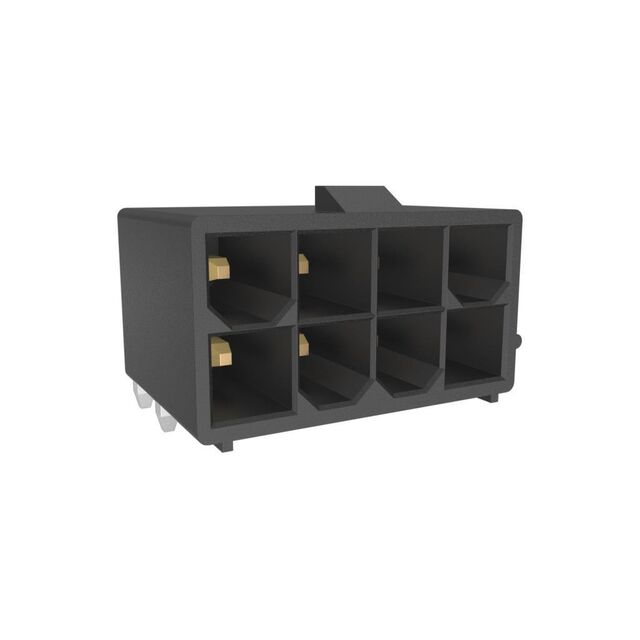

The Amphenol ICC (FCI) part number 10131318-08121G0LF is a Minitek Power4.2 series power-to-board connector header. It features an 8-position configuration with a 4.2 mm pitch and two rows of contacts. The component utilizes copper alloy pins with a gold plating finish, rated for 12.5 A current and 600 VAC voltage. Designed for right-angle through-hole mounting, the housing is black polyamide. It operates within a temperature range of -40°C to +105°C and meets UL94 V-0 flammability standards.
Feature Summary
- High-current power delivery capability suitable for demanding electrical loads
- Right-angle board edge mounting for compact system integration
- Gold contact plating ensures reliable conductivity and corrosion resistance
- Dual-row header design facilitates efficient space utilization on PCBs
Applications
- Server and storage equipment power distribution
- Telecommunications infrastructure power modules
- Industrial control system power interfaces
- Data center hardware power connections
Procurement Notes
Verify the specific suffix G0LF confirms the gold plating and packaging details against the official datasheet. Confirm availability status as this series may have limited stock or end-of-life implications. Ensure the right-angle orientation matches the mechanical layout requirements before ordering.
Selection Notes
Select this component when high current capacity and right-angle routing are required in power applications. The 4.2 mm pitch allows for robust spacing compared to signal connectors. Verify that the PCB footprint aligns with the Minitek Power4.2 series guidelines to ensure proper solder joint integrity and mechanical retention.
Part Context
This connector belongs to the Minitek Power4.2 family, designed for power-to-board applications. It complements other Amphenol ICC solutions by offering high current ratings in a standardized form factor. The series supports various pin counts and termination styles to meet diverse industrial and communication equipment needs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Check for updated suffixes within the same 10131318 series for minor variations.
