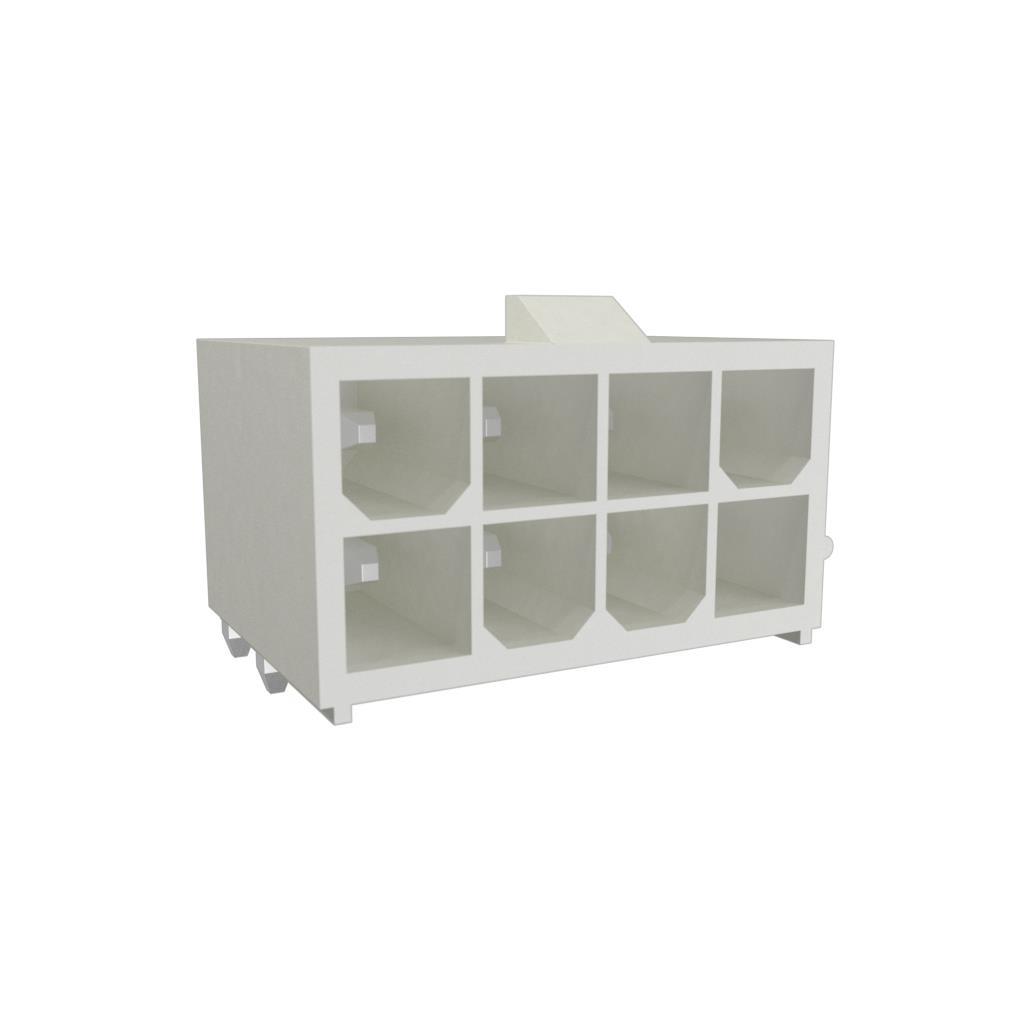

10131318-0821100LF

Product Detailed Parameters

• Description：CONN HEADER R/A 8POS 4.2MM
• Series：Minitek® Pwr 4.2 High Current
• Mfr：Amphenol ICC (FCI)
• Package：Tray
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.165" (4.20mm)
• Number of Positions：8
• Number of Rows：2
• Row Spacing - Mating：0.165" (4.20mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：0.138" (3.50mm)
• Overall Contact Length：-
• Insulation Height：0.404" (10.26mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：80.0µin (2.03µm)
• Contact Finish - Post：-
• Contact Material：Copper Alloy
• Insulation Material：Polyamide (PA66), Nylon 6/6
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：600V
