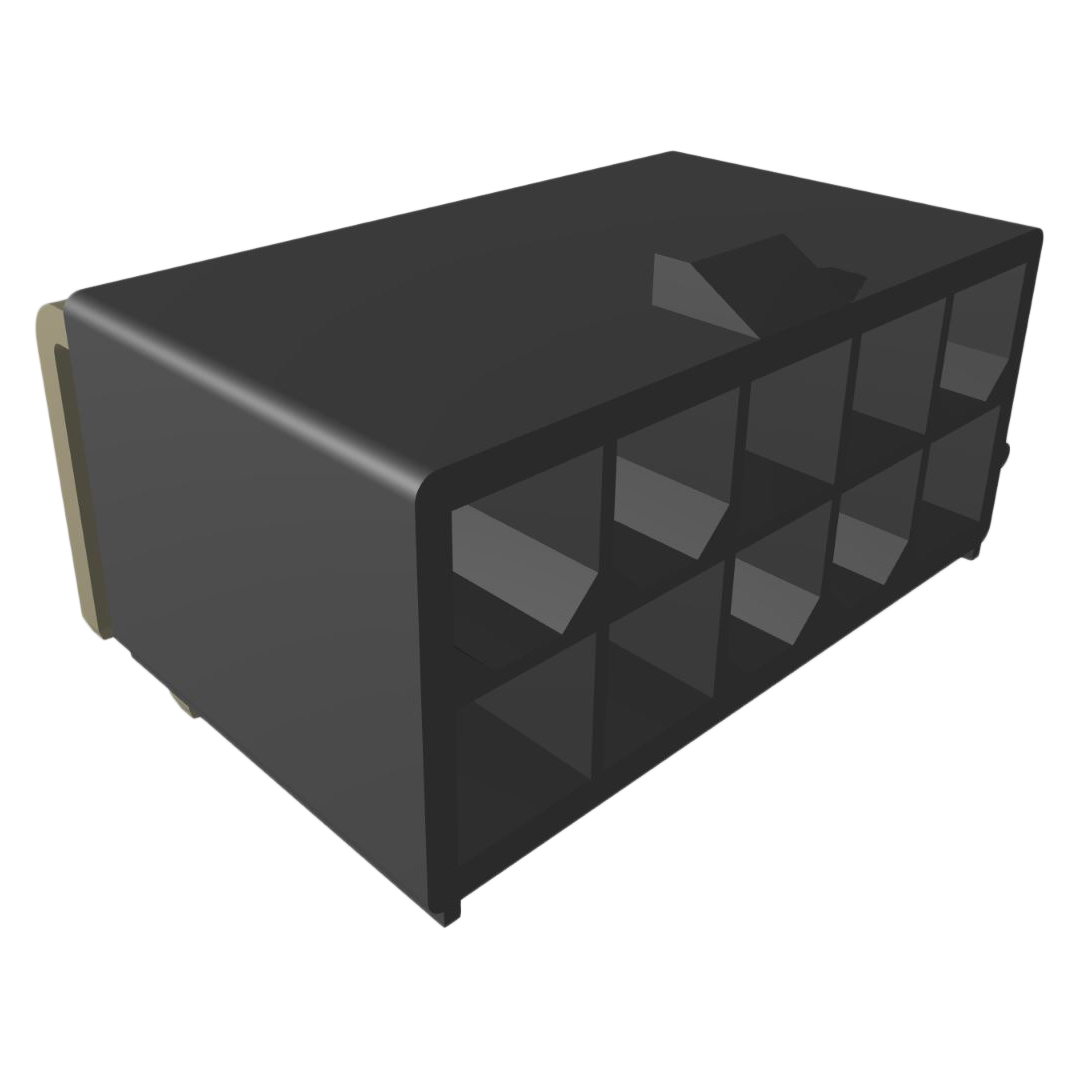

10131318-1012100LF

Description：CONN HEADER R/A 10POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:798695541b63 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 10POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.404" (10.26mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10131318-1012100LF

Overview

The Amphenol ICC (FCI) part number 10131318-1012100LF is a Minitek Power 4.2 series power connector header. It features a 12-position layout with a 4.2 mm pitch and operates on a dual-row configuration. The component utilizes through-hole termination for right-angle mounting onto printed circuit boards. Contact surfaces are finished with tin plating to ensure reliable electrical conductivity. The housing material is nylon 6.6, rated UL94 V-0 for flammability. The unit supports a maximum operating temperature of +105°C and a minimum of -40°C. Rated current is 12.5 A per contact, with a voltage rating of 600 VAC. Insulation resistance is specified at 1 GOhms.

Feature Summary

Provides high-current power distribution via dual-row blade-style contacts
Features right-angle through-hole mounting for space-efficient board integration
Utilizes tin-plated copper contacts for corrosion resistance and conductivity
Constructed with UL94 V-0 rated nylon 6.6 housing for thermal stability

Applications

Industrial power supply modules
Factory automation equipment
Heavy machinery control systems
Power distribution units

Procurement Notes

Verify the exact suffix against official Amphenol documentation to confirm plating type and packaging specifications. Confirm availability status as discontinued or active parts may require alternative sourcing strategies. Ensure compatibility with mating receptacles regarding pin count and pitch before procurement.

Selection Notes

Select this component when high current capacity and robust mechanical retention are required in compact spaces. The right-angle design facilitates efficient board stacking. Verify that the 4.2 mm pitch aligns with existing PCB footprint constraints and that the tin plating meets environmental requirements for the specific application environment.

Part Context

This connector belongs to the Minitek Power 4.2 family, designed for demanding industrial environments. The series offers various position counts and configurations to support diverse power delivery needs. It represents a standard solution for connecting power sources to main circuit boards in heavy-duty applications requiring reliable long-term performance.
