10131318-10211G0LF

Overview

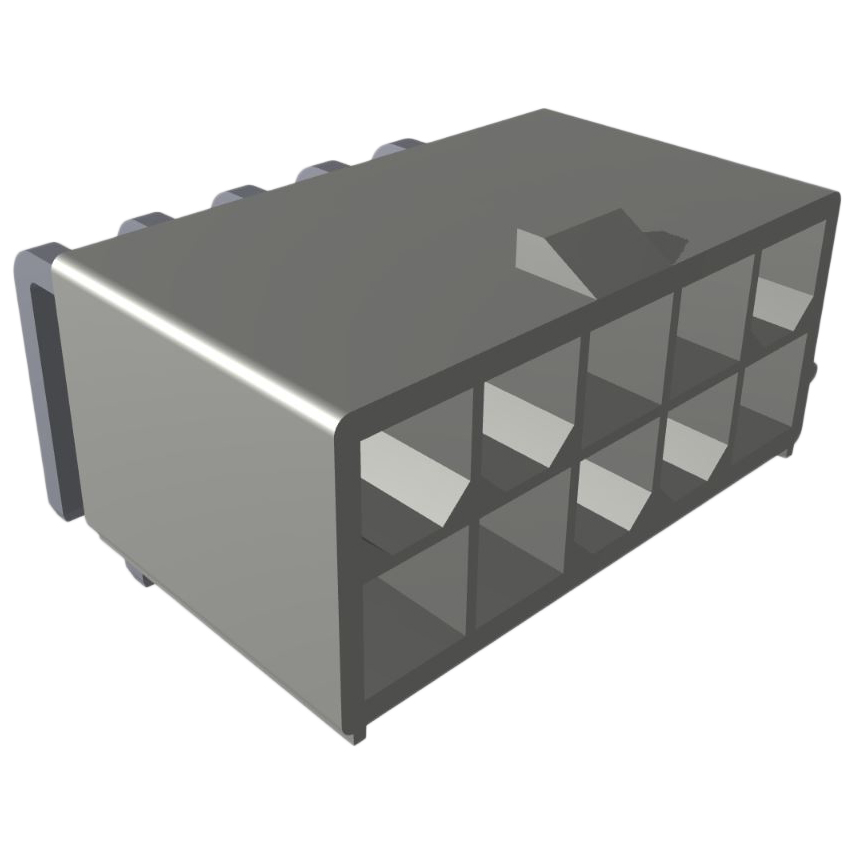

The Amphenol ICC (FCI) part number 10131318-10211G0LF is a Minitek Power4.2HCC double-row right-angle header designed for power-to-board applications. It features a 4.2 mm pitch and offers 10 positions with gold-plated copper contacts. The connector supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. It has a natural housing, vertical mating interface, and meets RoHS standards.

Feature Summary

• Double-row right-angle design for compact board integration
• Gold-plated contacts ensure reliable conductivity
• High current capacity suitable for power distribution

Applications

• Power supply modules
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and housing color variations. Ensure compatibility with mating receptacles from the same Minitek Power4.2 series. Check for lead-free compliance requirements relevant to your manufacturing process before finalizing procurement orders.

Selection Notes

Select this component when a right-angle power connection is required in space-constrained environments. The 4.2 mm pitch allows for higher current handling compared to smaller signal connectors. Verify that the PCB layout accommodates the double-row configuration and right-angle termination style effectively.

Part Context

This connector belongs to the Minitek Power4.2 series by Amphenol FCI, a line specialized in high-current power delivery. The series provides robust solutions for board-to-board and cable-to-board connections in demanding industrial and commercial applications requiring reliable power transmission.

Replacement Considerations

Compatible substitutes include other Minitek Power4.2 series headers with matching 4.2 mm pitch, 10 positions, and right-angle orientation. Ensure any replacement maintains the same current rating and contact plating specifications.
