Product Detailed Parameters
- Description：CONN HEADER R/A 10POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.404" (10.26mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

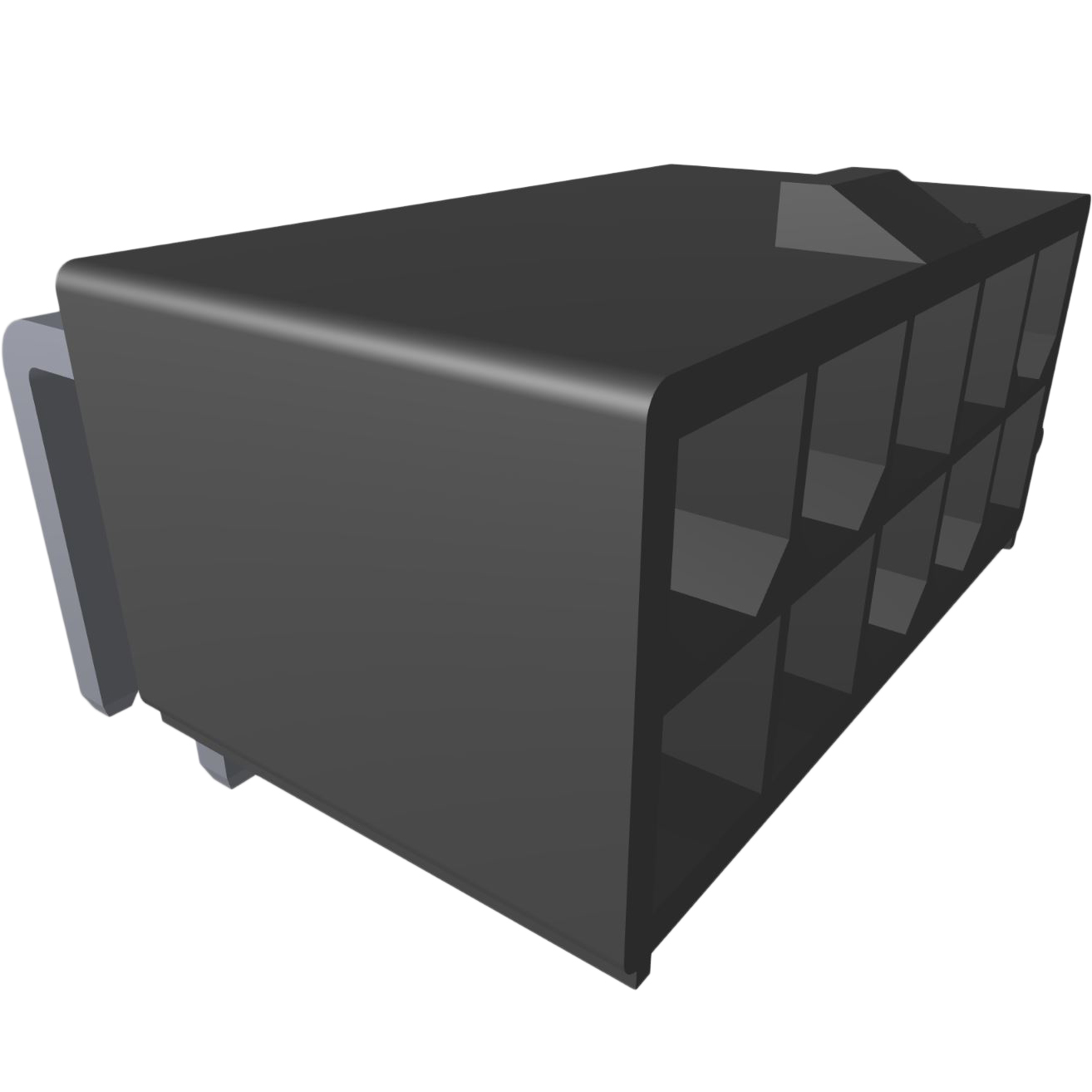

The Amphenol ICC (FCI) part number 10131318-1022100LF is a right-angle header connector belonging to the Minitek Power4.2 series. It features a 10-position configuration with a 4.2 mm pitch and dual-row arrangement. The connector utilizes male pin contacts with gold plating for reliable signal transmission. Designed for through-hole termination, it offers a robust mechanical interface suitable for high-density power applications.
Feature Summary
- Right-angle design facilitates compact board stacking
- Gold-plated contacts ensure stable conductivity
- Dual-row structure supports high-density layouts
Applications
- High-density power distribution systems
- Compact electronic device interconnects
- Server and storage backplane connections
Procurement Notes
Verify the specific contact plating thickness and material composition against the official datasheet before integration. Confirm that the right-angle orientation and through-hole mounting style align with the target PCB layout constraints. Ensure compatibility with mating receptacles within the same Minitek Power4.2 family to guarantee proper engagement and electrical continuity.
Selection Notes
Select this component when space-constrained designs require right-angle power connections. The 4.2 mm pitch provides ample spacing for higher current handling compared to finer pitches. Consider the dual-row format if increased pin density is necessary without expanding the footprint. Validate thermal performance requirements against the rated operating temperature range.
Part Context
This connector belongs to the Minitek Power4.2 series, engineered for power-to-board applications. The series emphasizes high current capacity and durability in demanding environments. As an FCI product, it adheres to strict quality standards for industrial and commercial electronics, ensuring consistent performance across various deployment scenarios.
Replacement Considerations
Compatible substitutes include other variants within the Minitek Power4.2 header family, such as different position counts or plating options. Verify mechanical dimensions and pin configurations to ensure direct interchangeability without redesigning the host PCB.
