10131318-10221G0LF

Overview

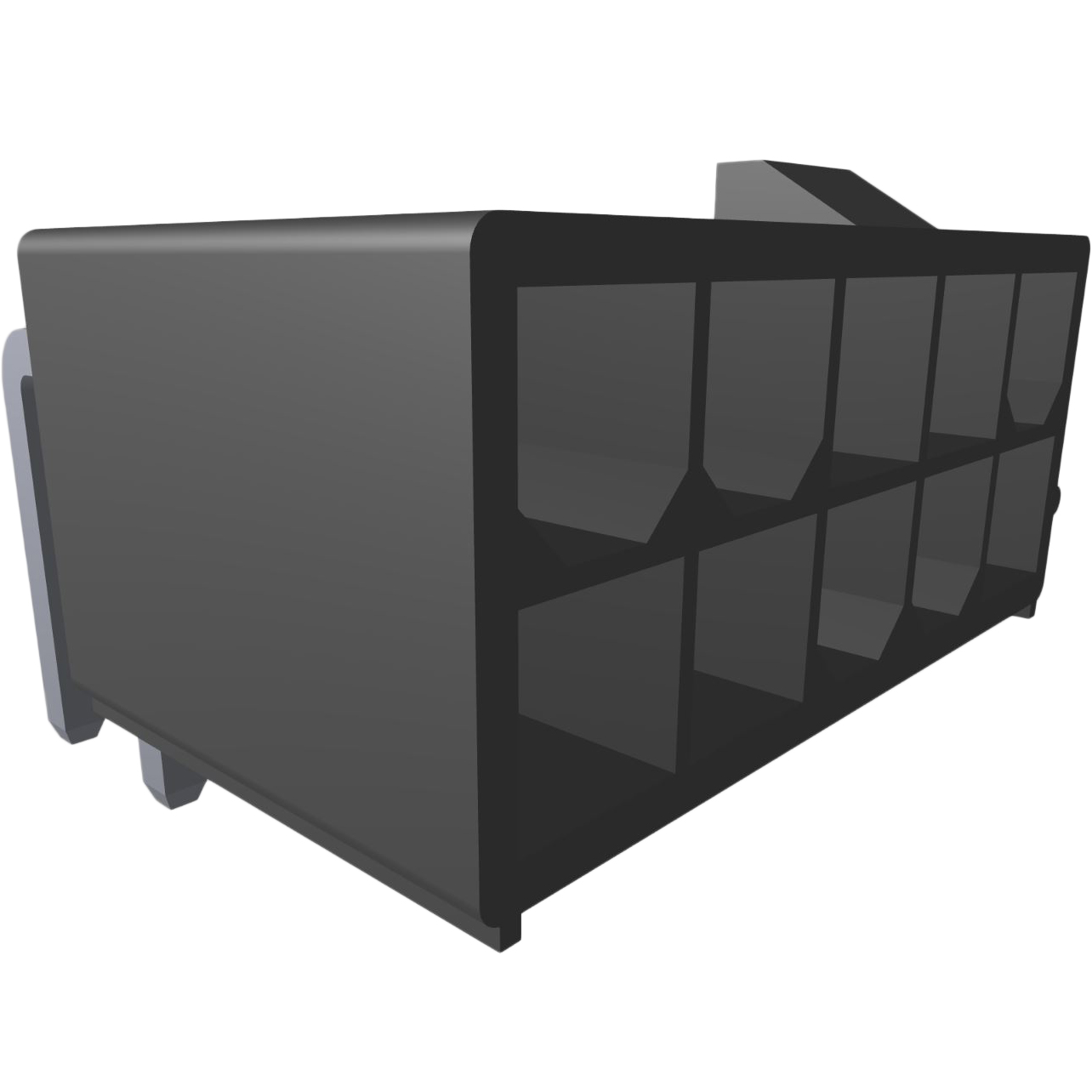

The Amphenol ICC (FCI) part number 10131318-10221G0LF is a Minitek Power 4.2 series power-to-board header connector. It features a 4.2 mm pitch and is configured as a dual row, right-angle through-hole device with ten positions. The contacts are constructed from copper and finished with a 30-microinch gold plating to ensure reliable conductivity. Designed for robust performance, the unit supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. The housing is black polyamide, providing an insulation resistance of 1 GOhm.

Feature Summary

• High-current capability rated at 12.5 A per contact
• Dual-row right-angle design for efficient board space utilization
• Gold-plated copper contacts for corrosion resistance
• Thermal stability up to +105°C operating temperature

Applications

• Server and storage system power distribution
• Telecommunications equipment power interfaces
• Industrial control board power connections
• Data center infrastructure power headers

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm pin count, plating thickness, and termination style. Ensure compatibility with mating receptacles within the Minitek Power 4.2 family. Confirm lead times and factory order requirements directly with authorized distributors, as availability may vary by region.

Selection Notes

Select this component when a high-density, right-angle power interface is required for boards with limited vertical clearance. The 4.2 mm pitch accommodates higher currents compared to smaller pitches. Verify that the PCB layout supports the specified through-hole termination and right-angle mounting orientation before finalizing the design.

Part Context

This connector belongs to the Minitek Power 4.2 product line, engineered for demanding power delivery applications. The series provides standardized solutions for server, storage, and communication systems requiring reliable electrical connections under thermal stress. It represents a specialized segment of Amphenol FCI's broader interconnect portfolio focused on high-power density.

Replacement Considerations

Direct substitutes must match the 4.2 mm pitch, 10-position count, dual-row configuration, and right-angle through-hole termination. Cross-referencing with other manufacturers requires verifying identical mechanical dimensions and electrical ratings to ensure functional interchangeability.
