10131318-12111G0LF

Overview

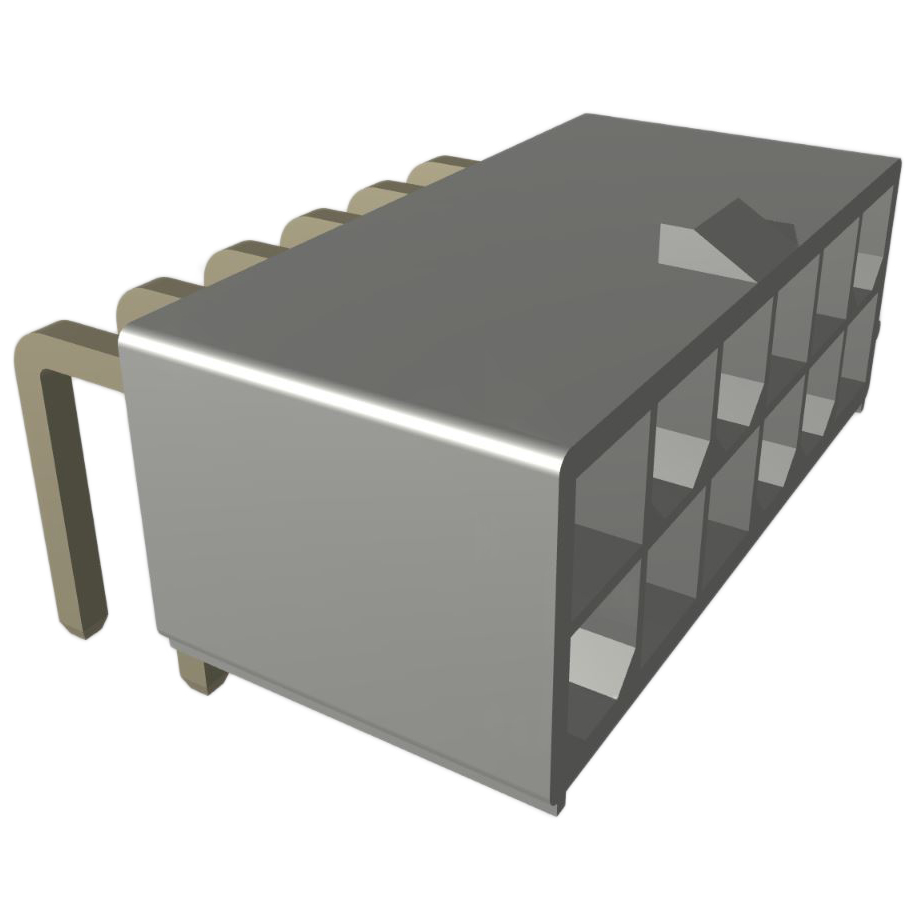

The Amphenol ICC (FCI) part number 10131318-12111G0LF is a Minitek Power4.2HCC double row right-angle header designed for power-to-board applications. It features 12 positions with a 4.2 mm pitch and utilizes gold-plated copper contacts to ensure reliable conductivity. The connector supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C. Constructed with natural thermoplastic insulation, it offers high insulation resistance and mechanical stability for demanding industrial environments.

Feature Summary

• Double row right-angle design facilitates compact power distribution layouts
• Gold-plated contacts provide corrosion resistance and stable electrical performance
• High current capacity suitable for robust power delivery requirements

Applications

• Industrial control systems requiring high-current connections
• Power distribution units in communication equipment
• Server and storage device internal power interfaces

Procurement Notes

Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before purchase. Confirm that the component meets all necessary regulatory standards for your target market. Ensure compatibility with mating connectors regarding pin count and physical dimensions to prevent assembly issues.

Selection Notes

Select this component when a high-current, double-row power connection is required in space-constrained designs. The 4.2 mm pitch allows for significant current handling while maintaining a manageable footprint. Consider the right-angle orientation for efficient board layout routing and thermal management in dense electronic assemblies.

Part Context

This header belongs to the Minitek Power4.2 series by Amphenol FCI, a line specialized in high-power board-level interconnects. The series is engineered for durability and high current carrying capacity, making it a standard choice for power delivery in heavy-duty electronics and infrastructure applications where reliability is critical.

Replacement Considerations

Direct substitutes include other Minitek Power4.2 headers with identical pin counts and configurations, such as the 10131318-04412GPLF for different position variants. Verify exact mechanical and electrical specifications before swapping to ensure seamless integration without redesigning the PCB.
