10131318-1212100LF

Overview

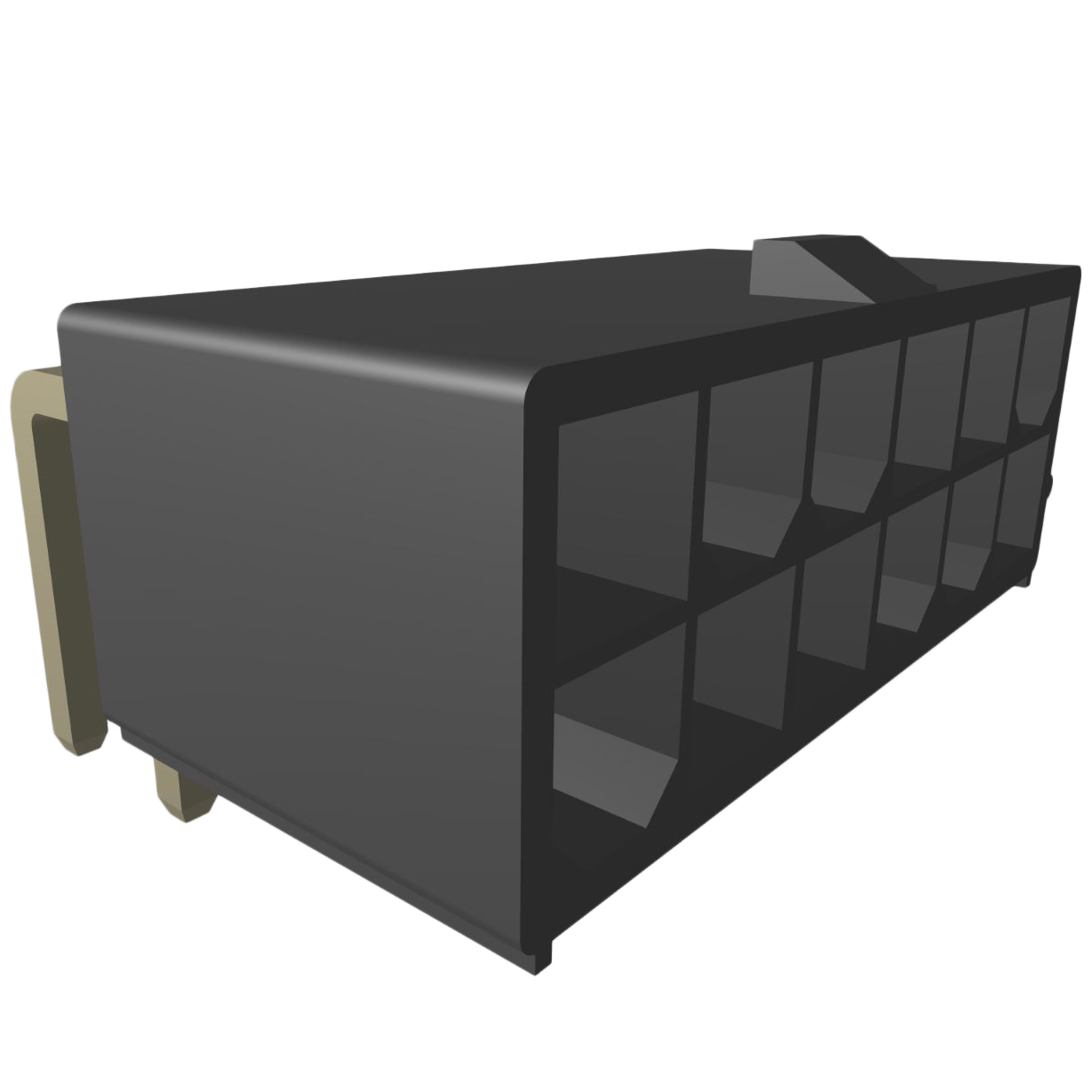

The Amphenol ICC (FCI) part number 10131318-1212100LF is a Minitek Pwr 4.2 series power connector header designed for through-hole, right-angle mounting. It features a 12-position configuration with a 4.2 mm pitch and two rows of male pins. The contacts are tin-plated copper, rated for 12.5 A current and 600 VAC voltage. The housing is black nylon 6.6, operating within a temperature range of -40°C to +105°C.

Feature Summary

• Supports high-current applications up to 12.5 A per contact
• Right-angle through-hole termination for board edge access
• Tin-plated copper contacts ensure reliable conductivity

Applications

• Power distribution in dense electronic systems
• Server and storage equipment power interfaces
• Industrial control board connections

Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest datasheet to confirm pin count and plating specifications. Ensure compatibility with mating receptacles from the same Minitek Pwr 4.2 family. Check for RoHS compliance status as tin-plated variants may differ from lead-free standards depending on the exact revision.

Selection Notes

Select this component when a right-angle, high-current power interface is required for PCB assembly. The 4.2 mm pitch accommodates higher current loads compared to standard signal headers. Ensure the design allows for through-hole soldering and provides adequate clearance for the right-angle profile.

Part Context

This connector belongs to the Minitek Pwr 4.2 Higher Current Connectors (HCC) line by Amphenol ICC (FCI). The series is engineered for power-dense environments, offering robust electrical performance and mechanical stability for critical power delivery tasks in modern electronics.

Replacement Considerations

Compatible substitutes include other 12-position, 4.2mm pitch right-angle headers from the Minitek Pwr 4.2 series, such as 10131318-121210PLF or 10131318-1212100LF equivalents, provided they match the tin plating and current rating requirements.
